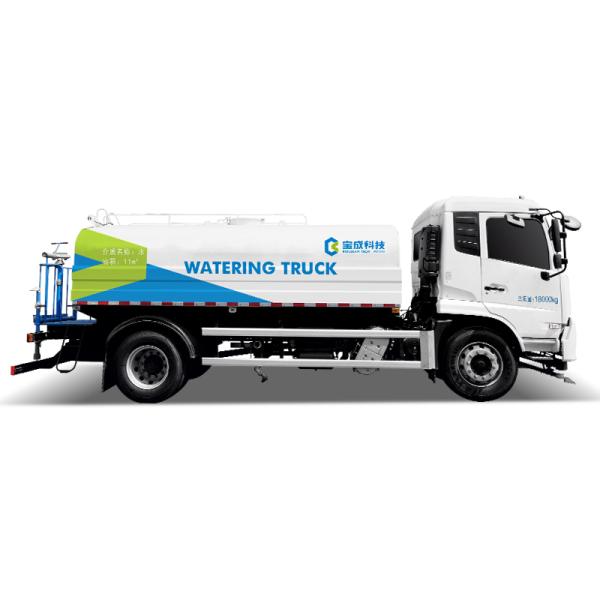

11m3 Dongfeng Water Truck Water Tank Truck 18000kg Diesel Powered

Name: 11m3 Dongfeng Water Truck Water Tank Truck 18000kg Diesel Powered
Brand: Bioclean
Price: 3565 USD

Quality 11m3 Dongfeng Water Truck Water Tank Truck 18000kg Diesel Powered for sale

Brand Name : Bioclean

Model Number : ZBJ5180GSSC

Place of Origin : Ningbo, China

MOQ : 1 Piece

Price : 3565-7685

Payment Terms : T/T

Certification : CE/ISO 9001/EPA/UL/SASO/ECAS/ Certification

Supply Ability : 5,000 units per year

Delivery Time : 15-45 working days

Packaging Details : Wooden Case /Iron Frame/Container/SKD /CKD

Dimension(L x W x H) : 7860×2530×2900,3070(mm)

Chassis : DFH1180EX8

Engine : DDi50E190-60

Maximum Speed : 89(km/h)

Approaching/Departure Angle : 15/14(°)

Front/Rear Overhang : 1400/1960,1430/1930,1400/1460,1430/1430(mm)

Axle Load : 6500/11500

Curb Weight : 10480(Kg)

Rated Loading : 7325(Kg)

Total Mass : 18000(Kg)

Number of tires : 6

tyre size : 275/80R22.5 18PR,10.00R20 18PR

Contact Now

11m³ water tank dongfeng water tank water spray spraying tanker sprayer truck

Low-pressure Water Pump: Adopt a self-priming two-stage centrifugal pump from a renowned enterprise, which has high efficiency and good reliability.
Front Spraying Device: There is a pair of duckbill-shaped forward nozzles under the front of the cab, which can perform forward fan-shaped spraying and cover 3 lanes at a time.

Middle Opposite Flushing: There is one conical nozzle on each side of the opposite flushing device under the tank body for two-way flushing. By loosening the two rotating sleeves at the nozzles, the nozzle angle can be adjusted arbitrarily. The front opposite flushing can wash 6 lanes at a time.

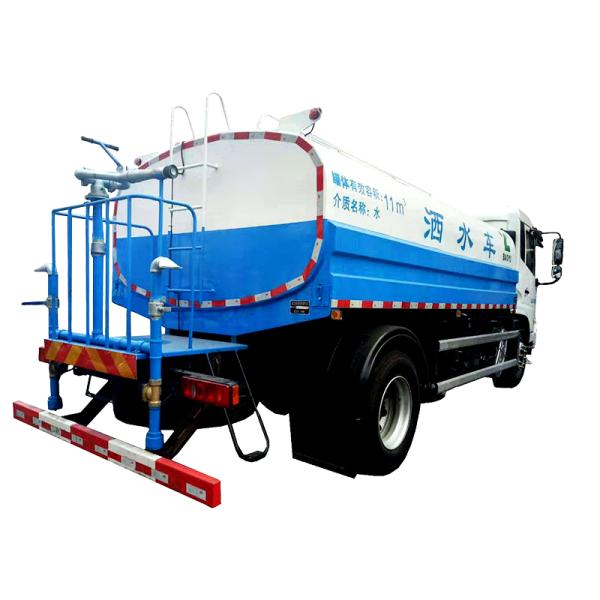

Rear Sprinkling Device: The rear sprinkling device is arranged on the vertical water pipes on both sides of the rear platform. The upper part of the water pipe is a duckbill-shaped nozzle facing left and right sides, and the lower part is a circular nozzle. When the two rear sprinkling nozzles are turned on at the same time, the sprinkling width is not less than 14m.

Water Cannon: The water cannon is an aluminum-made long-range water cannon, installed on the right side of the rear workbench. The water cannon can rotate 0° to 360°, and the cannon body can be operated to pitch up and down.

Parameters:

Item	ZBJ5180GSSC
Energy type	Diesel
Dimension(L x W x H)	7860×2530×2900,3070(mm)
Chassis	DFH1180EX8
Engine	DDi50E190-60
Curb Weight	10480(Kg)
Rated Loading	7325(Kg)
Total Mass	18000(Kg)
Front/Rear Overhang	1400/1960,1430/1930,1400/1460,1430/1430(mm)
Tyre size	275/80R22.5 18PR,10.00R20 18PR

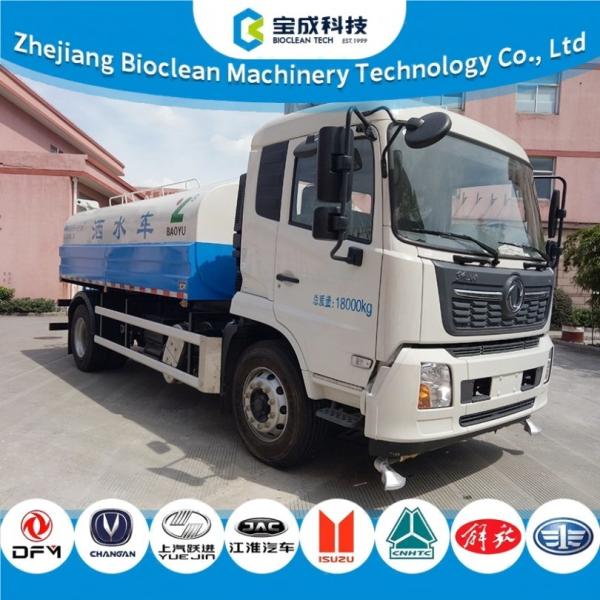

Actual photos:

11m3 Dongfeng Water Truck Water Tank Truck 18000kg Diesel Powered
