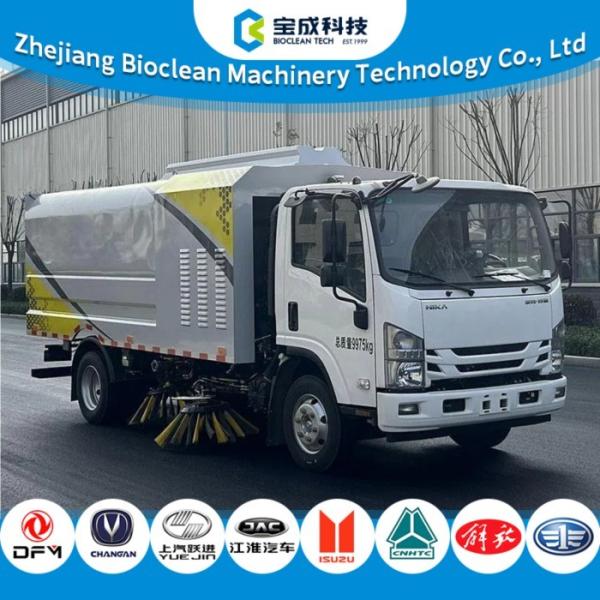

ZBJ5100TSLQ6 9ton diesel street road sweeper truck
Key Parameters
Total weight: 10 tons, suitable for medium and heavy cleaning needs
Size: 6755×2200×2745mm, good for passing through and wide cleaning range
Power: 160-horsepower diesel engine, ensuring efficient operation even with heavy loads
Load capacity: 3650Kg large dustbin, reducing the number of dumps
Core Configurations and Functions
Safety: Optional ABS systems: CM4XL-4S/4M (Guangzhou Ruili Kemi) and VIE ABS-Ⅱ (Zhejiang Wanan). Side protection is replaced by special devices. Rear protection is made of Q345B (120mm×40mm in cross-section, 365mm from the ground). Electric arrow lights at the rear work when cleaning to warn others.
Optional parts: 3815mm wheelbase. Optional box shapes, shutters, and choices for air grilles, wheel arches, cab styles, aluminum alloy rims, etc.
Special function: Equipped with professional road cleaning devices, focusing on road cleaning.
Application Scenarios
Suitable for large-area cleaning such as urban main roads and large industrial parks. It can handle a lot of road garbage efficiently, meeting large-scale cleaning needs.
parameters:
| Item | ZBJ5100TSLQ6 |
| Energy type | Diesel |
| Dimension(L x W x H) | 6755×2200×2745mm |
| Chassis | QL1100NBHACY |
| Engine | D25Pro |
| Curb Weight | 6130(Kg) |
| Rated Loading | 3650(Kg) |
| Total Mass | 9975(Kg) |
| Max.Speed | 105(km/h) |
| Sweeping Width | 2.2m |
| Sweeping Efficiency | 93% |
| Maximum Sweeping Speed | 20km/h |
| Maximum Inhaled Particles | 110 |

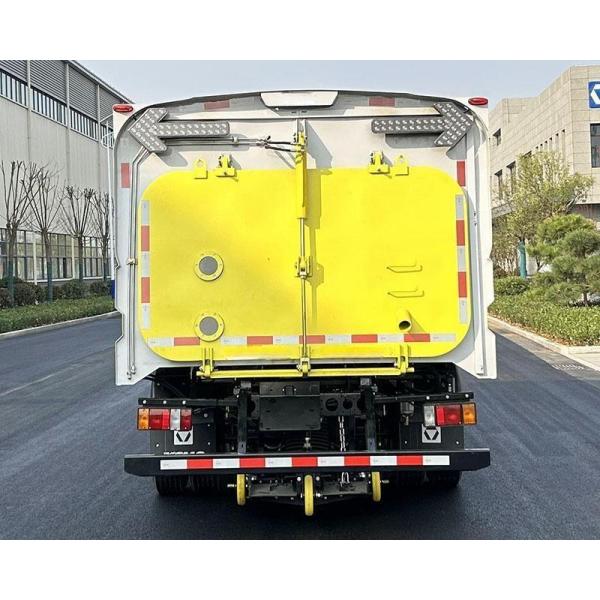

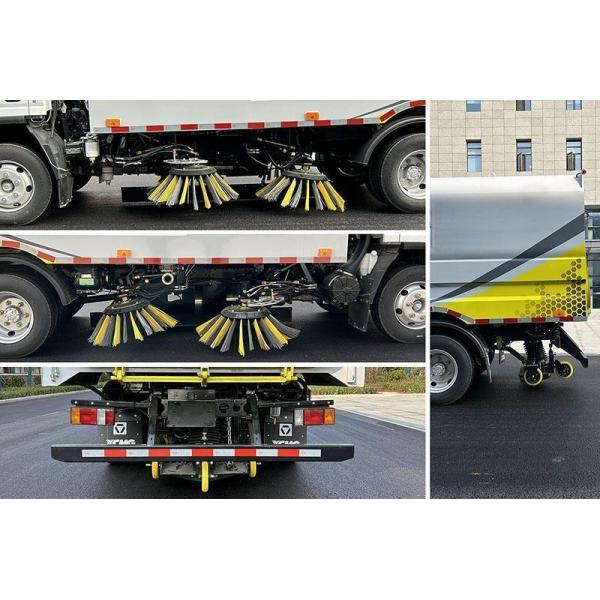

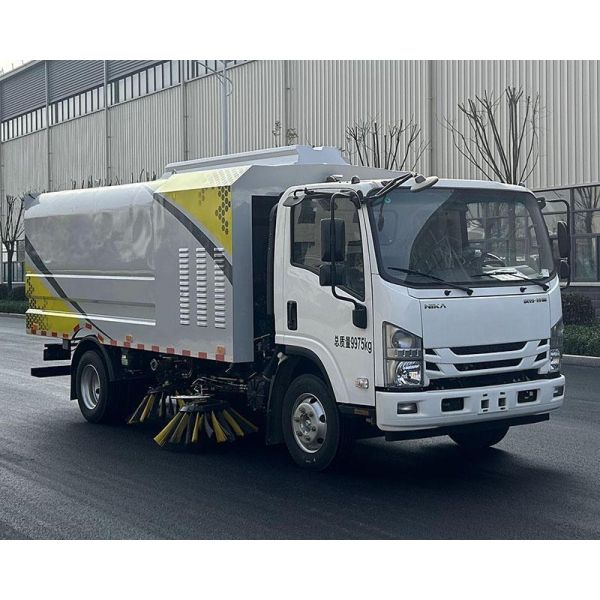

Actual photos
