Customizable 12500kg Truck Mounted Garbage Compactor Vehicle ZBJ5121XX

Name: Customizable 12500kg Truck Mounted Garbage Compactor Vehicle ZBJ5121XX
Brand: Bioclean
Price: 4585 USD

Quality Customizable 12500kg Truck Mounted Garbage Compactor Vehicle ZBJ5121XX for sale

Brand Name : Bioclean

Model Number : ZBJ5121ZYSSXBEV

Place of Origin : Ningbo, China

MOQ : 1 Piece

Price : 4585-6855usd

Payment Terms : T/T,L/C

Supply Ability : 5000unit/year

Delivery Time : 15-45 working days

Packaging Details : Wooden Case /Iron Frame/Container/SKD /CKD

Certification : CE/ISO 9001/EPA/UL/SASO/ECAS/ Certification

Dimension(L x W x H) : 7805,7770,7515×2510×3050(mm)

Chassis : SX1120EV421N

Engine : TZ365XSC12

Weight : 12495(Kg)

Load Capacity : 3150,3215,3050,3115(Kg)

Chassis Total Capacity : 9150,9250(Kg)

Maximum Speed : 89(km/h)

Approaching/Departure Angle : 20/14(°)

Front/Rear/Rear Extension : 1195/2450(mm)

Axle Load : 4165/8330

Bin Lifting equipment : Various Bin lifting solutions avaliable

Tyre number : 6

Tyre Type : 8.25R20 16PR,9.00R20 16PR,245/70R19.5 16PR

Contact Now

Customizable 12500kg Truck Mounted Garbage Compactor Vehicle ZBJ5121XX

Product Overview – 12.5 Ton Garbage Compactor Truck

Gross Vehicle Weight (GVW): 12,500 kg

Payload Options (Based on Configuration & Seating):

3150 kg (3 crew, Config A) / 3215 kg (2 crew, Config A)

3050 kg (3 crew, Config C) / 3115 kg (2 crew, Config C)

Wheelbase: 3800 mm

Fuel Type: Electric (Lithium Iron Phosphate Battery)

Motor Type: Permanent Magnet Synchronous Motor

Rated Power: 105 kW

Peak Power: 160 kW

Body Features & Configurations:

Main functional systems: garbage box, loading mechanism, compactor, hydraulic & electrical systems

Available in 3 configurations: A (bin lifter), B (cover + bin lifter), C (hopper)

Optional parts include various loader shapes, side guards, decorative panels, rear paddles

Safety & Components:

Side protection: Aluminum alloy, bolted

Rear protection: replaced by functional equipment, clearance 480 mm

Equipped with ABS (CM4XL-4S/4M), ETC device, GPS-enabled tachograph
Reliable and customizable waste transfer solution for urban sanitation.

Parameters:

Item	ZBJ5121ZYSSXBEV
Energy type	Pure electric
Dimension(L x W x H)	7805,7770,7515×2510×3050(mm)
Chassis	SX1120EV421N
Engine	TZ365XSC12
Weight	12495(Kg)
Rated Loading	3150,3215,3050,3115(Kg)
Axle Load	4165/8330
Front/Rear Overhang	1195/2450(mm)
Tyre size	8.25R20 16PR,9.00R20 16PR,245/70R19.5 16PR

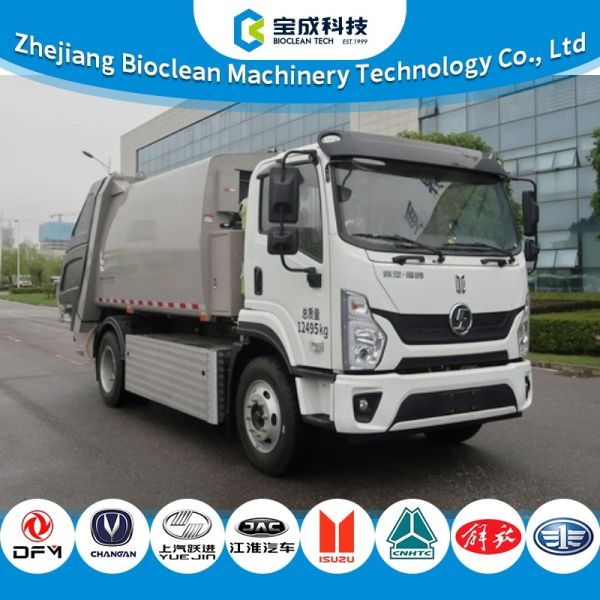

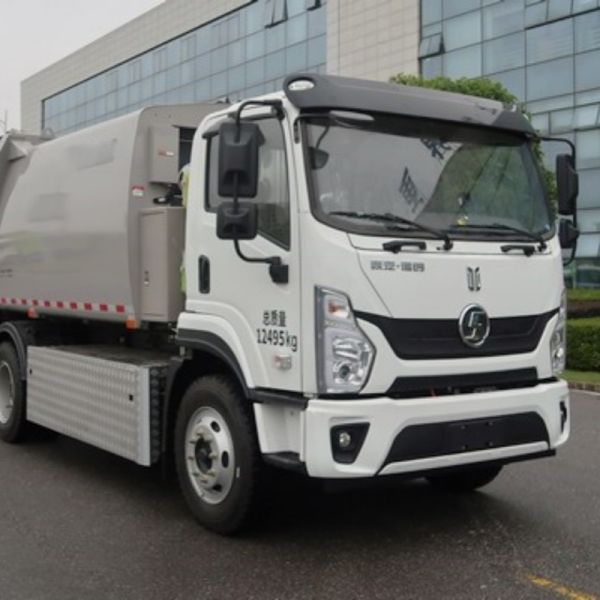

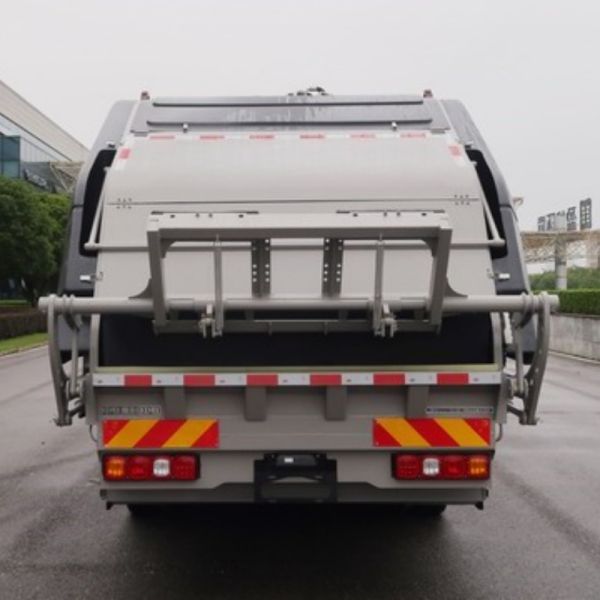

Actual photos:

Customizable 12500kg Truck Mounted Garbage Compactor Vehicle ZBJ5121XX
