18Tons Pure Electric Waste Truck Refuse Compactor Vehicle With TZ370XS-LKM1103 Engine

Name: 18Tons Pure Electric Waste Truck Refuse Compactor Vehicle With TZ370XSLKM1103 Engine
Brand: Bioclean
Price: 3800 USD

Quality 18Tons Pure Electric Waste Truck Refuse Compactor Vehicle With TZ370XS-LKM1103 Engine for sale

Brand Name : Bioclean

Model Number : ZBJ5180ZYSDFBEVM

Place of Origin : Ningbo, China

MOQ : 1 Piece

Price : USD3800-9060

Payment Terms : T/T,L/C

Supply Ability : 5000unit/year

Delivery Time : 15-45 working days

Packaging Details : Wooden Case /Iron Frame/Container/SKD /CKD

Certification : CE/ISO 9001/EPA/UL/SASO/ECAS/ Certification

Dimension(L x W x H) : 9120,8650,8895,8975,8745×2520×3215(mm)

Chassis : DFH1180EEV2

Engine : TZ370XS-LKM1103

Weight : 18000(Kg)

Load Capacity : 5235,5505,5085,5035 ,5300,5570,5150,5100(Kg)

Chassis Total Capacity : 12570,12300,12720,12770(Kg)

Maximum Speed : 89(km/h)

Approaching/Departure Angle : 16/14(°)

Front/Rear/Rear Extension : 1400/2900,1400/2750,1400/2600(mm)

Axle Load : 6500/11500

Bin Lifting equipment : Various Bin lifting solutions avaliable

Tyre number : 6

Tyre Type : 10.00R20 18PR,295/80R22.5 16PR,295/80R22.5 18PR

Contact Now

ZBJ5180XXEV 18Tons pure electric mobile trash compressed garbage compactor truck

18-Ton Pure Electric Sanitation Truck

(Garbage Compression & Transfer Vehicle)

This 18-ton pure electric sanitation truck is designed for efficient waste collection, compression, and transport. It features a permanent magnet synchronous motor (Model: TZ370XS-LKM1103) with a rated power of 80 kW and peak power of 160 kW, powered by a lithium iron phosphate battery system.

Payload Capacity: 5035–5570 kg (varies by configuration A–E)

Configurations: Flip bucket, tipping hopper, barrel lift, flatbed tipper, or no rear device

Dimensions (L): 8650–9120 mm

Safety:

EBS with ABS function (Model: EBS 5)

Side and rear protection replaced by dedicated structural components (clearance: 490 mm)

Additional Features:

Optional ETC, GPS recorder

Rear work lights, camera systems, decorative trim

Hydraulic system and self-compressing garbage container

Optional sewage tank and rear signage board

A clean-energy solution tailored for urban waste management.

Parameters:

Item	ZBJ5180ZYSDFBEVM
Energy type	Pure electric
Dimension(L x W x H)	9120,8650,8895,8975,8745×2520×3215(mm)
Chassis	DFH1180EEV2
Engine	TZ370XS-LKM1103
Weight	18000(Kg)
Rated Loading	5235,5505,5085,5035 ,5300,5570,5150,5100(Kg)
Axle Load	6500/11500
Front/Rear Overhang	1400/2900,1400/2750,1400/2600(mm)
Tyre size	10.00R20 18PR,295/80R22.5 16PR,295/80R22.5 18PR

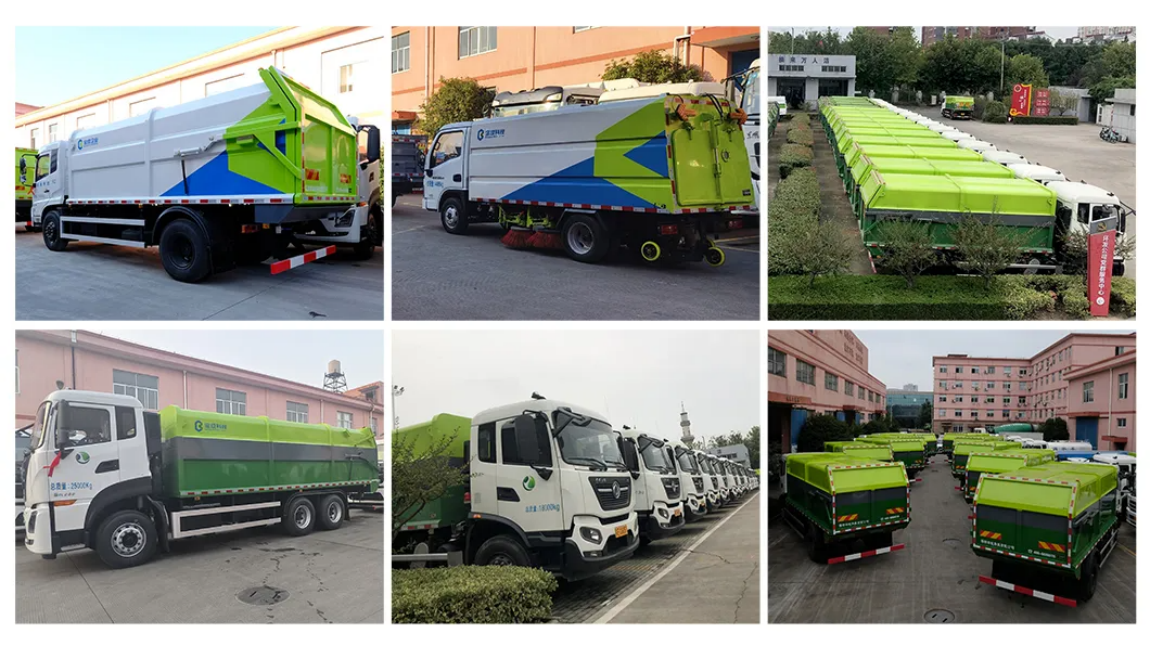

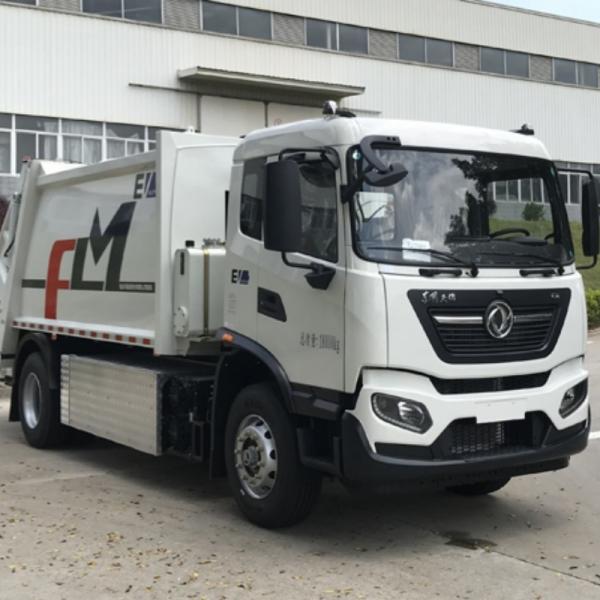

Actual photos:
