ZBJ5082XX 8TONS OMD mobile trash compressed garbage compactor truck
Chassis: Adopt a second-class chassis of a well-known brand, which has strong load-bearing capacity, advanced technology and reliable quality. It is used to realize functions such as the bearing of special mechanisms and the driving of the vehicle.
Engine: Adopt a diesel engine of a well-known brand, which has strong power.
The garbage bin is a component of this product for collecting and storing domestic waste, and it is also the base for connecting the compaction and filling device. The overall stress structural parts of the garbage bin are designed reliably, and the rigidity is reasonably matched; the garbage bin is designed to be airtight, which can effectively prevent secondary pollution.
The sub-frame is a basic component of the superstructure of the product. It is fixed on the chassis girder through the connection seat and plays a role in fixing and supporting the superstructure.
The vehicle adopts a control mode of buttons + operating levers. High-quality electrical components at home and abroad are used, and different control programs are compiled according to different requirements to realize intelligent control, safety control and humanized control operations of the vehicle. Moreover, the controller has short-circuit self-protection. Therefore, this system has the characteristics of strong unity, high reliability, and convenient operation and maintenance.
Parameters:
| Item | ZBJ5082ZYSC |
| Energy type | Diesel |
| Dimension(L x W x H) | 7105×2070×2375(mm) |
| Chassis | JX1083TG26 |
| Engine | JX4D306H |
| Weight | 8200(Kg) |
| Rated Loading | 2200(Kg) |
| Axle Load | 2930/5270 |
| Front/Rear Overhang | 1420/2820(mm) |
| Tyre size | CE/ISO 9001/EPA/UL/SASO/ECAS/ Certification |

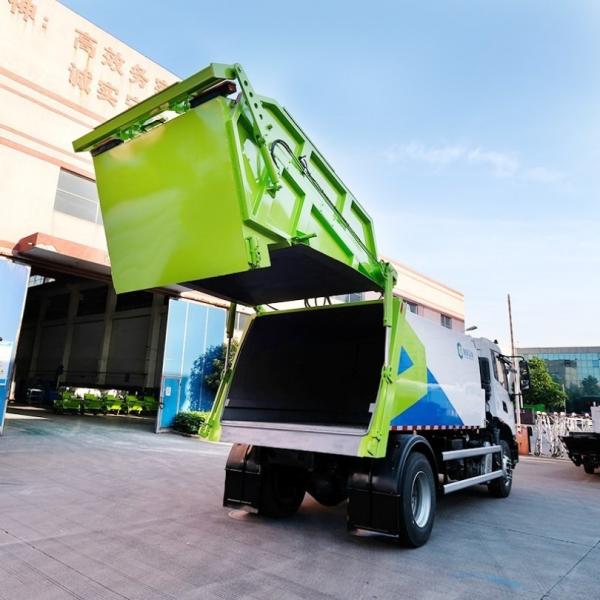

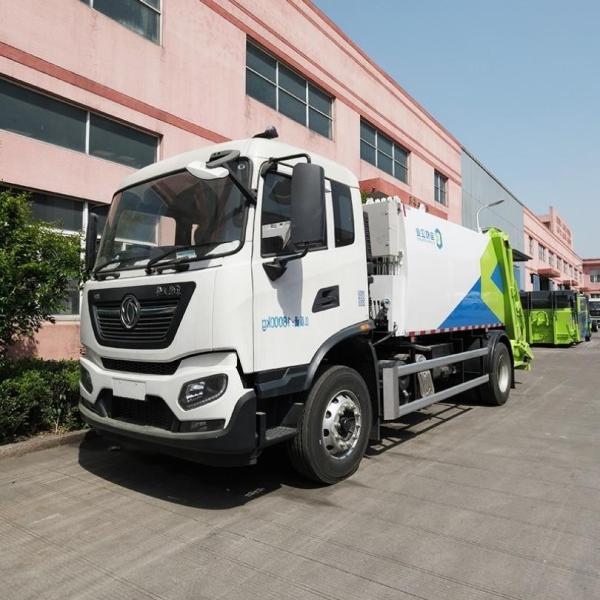

Actual photos:
