4.5ton Pure Electric Matchbox Garbage Dump Truck 90km/H Max. Speed

Name: 45ton Pure Electric Matchbox Garbage Dump Truck 90kmH Max Speed
Brand: Biotec
Price: 3165 USD

Quality 4.5ton Pure Electric Matchbox Garbage Dump Truck 90km/H Max. Speed for sale

Brand Name : Biotec

Model Number : ZBJ5047ZZZSHBEV

Certification : CE/ISO 9001/EPA/UL/SASO/ECAS/ Certification

Place of Origin : Ningbo, China

MOQ : 1 Piece

Price : 3165-5865usd

Payment Terms : T/T

Supply Ability : 5,000 units per year

Delivery Time : 15-45 workdays

Packaging Details : Wooden Case /Iron Frame/Container/SKD /CKD

Item : ZBJ5047ZZZSHBEV

Energy type : Pure electric

Dimension(L x W x H) : 5235,5280×1765,1925×2125,2290,2190(mm)

Chassis : SH1047PCEVNZY1

Driving Moto : TZ290XS025

Power : 136PS

Curb Weight : 3130,3280(Kg)

Rated Loading : 1235,1085(Kg)

Total Mass : 4495(Kg)

Max. Speed : 90km/h

App./Dep.Angle : 18/13(°)

Front/Rear Overhang : 1090/1295,1090/1340(mm)

Axle Loading : 1495/3045kg

Contact Now

ZBJ5047ZZZSHBEV 4.5ton pure electric matchbox trash garbage dump truck

This vehicle has ABS (model YF8, made by Wuhan Yuanfeng Automotive Electronic Control System Co., Ltd.). It uses a lithium iron phosphate battery (model L173TB3, from CATL) and a permanent magnet synchronous drive motor (model TZ290XS025, 50kw rated/100kw peak power, produced by CRRC Times Electric Vehicle Co., Ltd.).

It can have an optional ETC device. The rear right work light only works during operation, not when driving.

Side protection is aluminum alloy, bolted. Rear protection is replaced by a special device (380mm off the ground; 280mm with optional external scraper guide rails).

Equipped with a rear bucket lifting mechanism and a rear dumping anti-drip garbage box, it self-loads/unloads, mainly for collecting and transporting urban domestic and kitchen waste. The box weighs 407kg (Q235-B, 3mm thick).

With optional external scraper guide rails, the vehicle is 5280mm long, 1925mm wide, 2290mm high (2190mm with optional slide plate), with a 1340mm rear overhang, 3280kg curb weight, 1085kg rated load, and 507kg box.

Curb weight excludes fire extinguisher, tools, and spare tire. Optional cab front grille (with chassis) and a side protection device (aluminum alloy, bolted).

parameters:

Item	ZBJ5047ZZZSHBEV
Type of energy	Pure electric
Dimension(L x W x H)	5235,5280×1765,1925×2125,2290,2190(mm)
Chassis	SH1047PCEVNZY1
Engine	TZ290XS025
Power	136ps
Curb Weight	3130,3280(Kg)
Rated Loading	1235,1085(Kg)
Total Mass	4495(Kg)
Max.Speed	90(km/h)
App./dep. Angle	18/13(°)
Front/Rear Overhang	1090/1295,1090/1340(mm)
Axle Loading	1450/3045kg

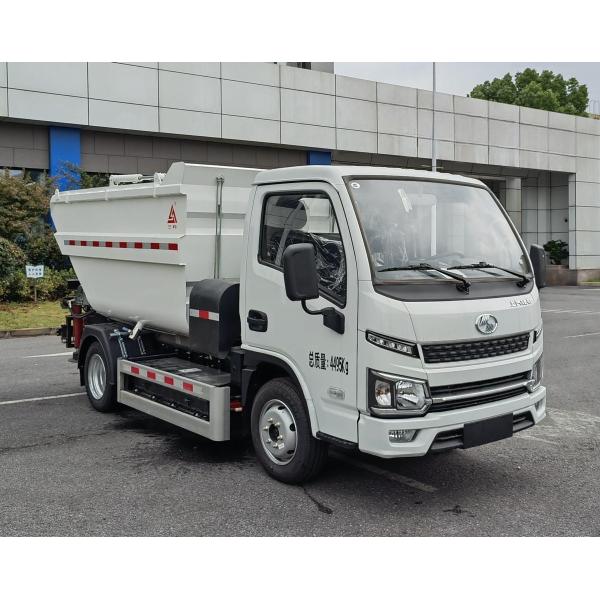

Actual photos

4.5ton Pure Electric Matchbox Garbage Dump Truck 90km/H Max. Speed

Product Advantages

Cleaning works fast

We are a professional factory making special trucks. We have many types. We can make them as you need.

The box can hold a lot.

Its outside is curved and smooth. The bottom plate is folded without welding, so it won’t leak. It looks clean and nice. It’s hard to deform, very strong, and holds more than other similar products.

It’s easy to use.

It’s made of strong manganese steel—hard to deform, wear-resistant, and not easy to rust.

We think a lot about where you use it. It has user-friendly designs: night lights, two pollution-proof water tanks, a drain pipe, remote control, and full guides with videos for use and care.

Actual photos

4.5ton Pure Electric Matchbox Garbage Dump Truck 90km/H Max. Speed
