16T 12000L Diesel Water Spray Fog Cannon Dust Suppression Mist Cannon TruckTotal Mass: 18 tons
Load: 9325kg, 8105kg, 8305kg
Tank Volume: 10.3 cubic meters
Use & Parts
Cleans haze and dust on roads, squares or fixed spots. Has spray system, liquid tank and air control.
Two Configs
4500mm wheelbase (standard):
Weight: 8480kg; width 2450mm, height 3115mm.
Can add front water cannon (780mm front part); cab look with chassis.
Lengths: 9275mm, 9245mm, 10055mm, 10025mm (varies with front/rear parts).
Angles: 13° approach, 10° departure. Tank: 4400×2400×1420mm, total 10.3, effective 9.8 cubic meters.
Weight: 9700kg or 9500kg; load 8105kg or 8305kg.
Width 2480mm, height 3465mm, length 10580mm.
Angles: 12° approach, 9° departure. Tank: 3920×2400×1420mm, total 9.5, effective 9.1 cubic meters.
Safety
Side guards: Aluminum (standard) or Q235B (option), bolted.
Rear guards: Q355B (standard) or Q235A (option), bolted. Size: 240×65mm (standard) or 150×100mm (option). Height: 420mm (standard) or 420/475mm (option)
ABS
Options: 3631010-C2000, ABS 8; ABS-E 4S/4M (ZF); J ABS .
Options
Looks: middle beam left, front duckbill, rear sprinklers, no right rear water gun, front cover, right layout.
Uses
Good for haze and dust control in many places. Many options to fit needs.
parameters
| Item | ZBJ5160TDYC6 |
| Energy type | Diesel |
| Dimension(L x W x H) | 8210× 2500, 2550× 3100(mm) |
| Chassis | CDW1164H501EFB |
| Engine | YCS04200-68 |
| Curb Weight | 9885(Kg) |
| Total Mass | 16200(Kg) |
| Maximum Speed | 89(km/h) |
| Water Tank Capacity | 9m³ |
| Fan Power | 20kw |
| Pump Material | Stainless steel multi-stage centrifugal pump |
| Pump Power | 6kw |

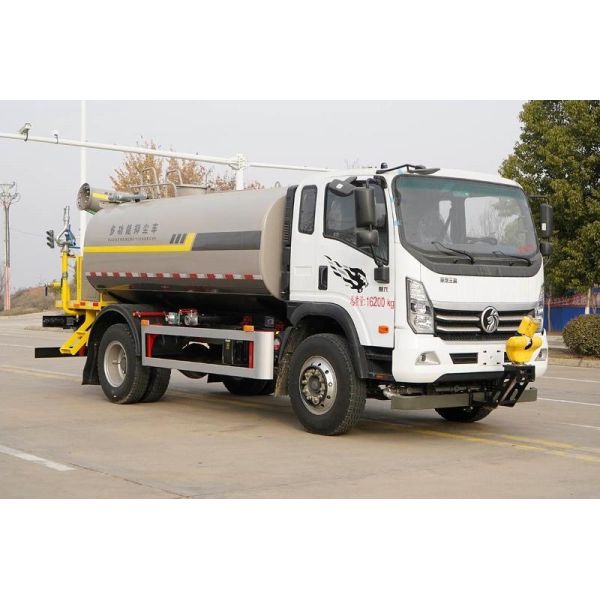

Actual photos
