11.88m3 11880L 18tons Diesel Sewer Suction Vehicle 259hp For Efficient Work

Name: 1188m3 11880L 18tons Diesel Sewer Suction Vehicle 259hp For Efficient Work
Brand: Bioclean
Price: 6355 USD

Quality 11.88m3 11880L 18tons Diesel Sewer Suction Vehicle 259hp For Efficient Work for sale

Brand Name : Bioclean

Model Number : ZBJ5180GXWAHA

Certification : CE/ISO 9001/EPA/UL/SASO/ECAS/ Certification

Place of Origin : Ningbo, China

MOQ : 1 Piece

Price : 6355-7695usd

Payment Terms : T/T

Supply Ability : 5,000 units per year

Delivery Time : 15-45 workdays

Packaging Details : Wooden Case /Iron Frame/Container/SKD /CKD

Item : ZBJ5180GXWAHA

Energy type : Diesel

Dimension(L x W x H) : 8250,8050×2500×3450(mm)

Chassis : EQ1185LJ9CDE

Engine : B6.2NS6B260

Curb Weight : 8300(Kg)

Rated Loading : 9570,9505(Kg)

Total Mass : 18000(Kg)

Max. Speed : 89,105(km/h)

App./Dep.Angle : 19/13,19/15(°)

Front / Rear suspension : 1260/2490,1450/2300,1260/2290,1450/2100,1420/2330,1420/2130(mm)

Axle Load : 6500/11500kg

Tank Volume : 11880L

Contact Now

ZBJ5180GXWAHA 11.88m³ 11880L 18tons diesel sewer sewage suction truck

Core Parameters

Total Weight: 18000Kg, stable for sewage suction.

Size: 8250, 8050×2500×3450mm, fits urban/suburban sewage cleaning.

Power: 259hp, strong for efficient work.

Load Capacity: 9570, 9505Kg, handles large liquid waste.

Main Functions & Devices

Used to suck dirt from ditches/sewers. Key devices: sewage suction tank and system, for efficient liquid waste collection/transport.

Size & Wheelbase

4500mm wheelbase chassis. Length/front overhang/wheelbase/rear overhang (mm) relations: 8250/1260/4500/2490, etc.

Tank Specifications

Total volume: 12.47m³; effective: 11.88m³ (liquid waste, density 800kg/m³).

Tank dimensions (straight section × diameter): 4800×1800mm, liftable for discharge.

Safety

ABS: Optional J ABS (Jiaozuo Borui Ke) and ABS/ASR-24V-4S/4M4 (Xiangyang Dongfeng Longcheng).

Protection: Q235A material. Side (welded + bolted); rear (welded, 120×55mm section, 430mm off ground).

Options

Cab/pedal styles, speed limiter (89km/h), exhaust pipe position (with chassis).

Water pump position, rear head lock, ladder, tank shape.

Uses

Ideal for urban/suburban ditch/sewer dirt suction. Powerful, large-load, keeps environments clean.

parameters:

Item	ZBJ5180GXWAHA
Energy type	Diesel
Dimension(L x W x H)	8250,8050×2500×3450(mm)
Chassis	EQ1185LJ9CDE
Engine	B6.2NS6B260
Curb Weight	8300(Kg)
Rated Loading	9570,9505(Kg)
Total Mass	18000(Kg)
Maximum Speed	89,105(km/h)
App./Dep.Angle	19/13,19/15(°)
Front / Rear suspension	1260/2490,1450/2300,1260/2290,1450/2100,1420/2330,1420/2130(mm)
Axle Load	6500/11500kg
Tank Volume	11880L

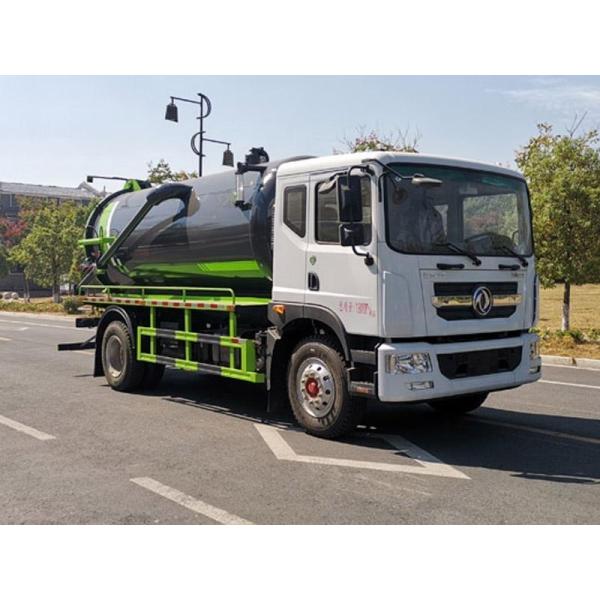

Actual photos

11.88m3 11880L 18tons Diesel Sewer Suction Vehicle 259hp For Efficient Work

General Optional Setups & Region-Specific Configurations:

Optional Configurations	Intelligent Monitoring System
	Multilingual Control Panel
	Anti-Overflow Alarm Device
	Quick-Connect Fittings & Multi-Size Suction Hoses
	Hydraulic Drive System
	Self-Cleaning Flushing System
	Overload Protection Device
	Anti-overflow Valve
Tropical Regions	Anti-UV Thermal Insulation Coating
	High-Efficiency Cooling System
	Moisture-Resistant Electrical Components
	Corrosion-Resistant Sealing Gaskets
	High-Flow Cooling Water Pump
Cold Regions	Tank Thermal Insulation Layer
	Engine Preheating System
	Battery Heater
	Anti-Freeze Vacuum Pump Oil
	Suction Hose Heating Tape
	Low-Temperature-Resistant Rubber Parts
	Drain Valve Heat Tracing System

11.88m3 11880L 18tons Diesel Sewer Suction Vehicle 259hp For Efficient Work
