10m3 10000L 16tons Suction Sewage Truck With D4.5NS6B240 Engine

Name: 10m3 10000L 16tons Suction Sewage Truck With D45NS6B240 Engine
Brand: Bioclean
Price: 6275 USD

Quality 10m3 10000L 16tons Suction Sewage Truck With D4.5NS6B240 Engine for sale

Brand Name : Bioclean

Model Number : ZBJ5160GXWE6

Certification : CE/ISO 9001/EPA/UL/SASO/ECAS/ Certification

Place of Origin : Ningbo, China

MOQ : 1 Piece

Price : 6275-7855usd

Payment Terms : T/T

Supply Ability : 5,000 units per year

Delivery Time : 15-45 workdays

Packaging Details : Wooden Case /Iron Frame/Container/SKD /CKD

Item : ZBJ5160GXWE6

Energy type : Diesel

Dimension(L x W x H) : 7350,7480,7550×2500,2550×3300,3350,3450,3550(mm)

Chassis : EQ1165LJ9CDE

Engine : D4.5NS6B240

Curb Weight : 7800,8000(Kg)

Rated Loading : 8270,8205,8070,8005(Kg)

Total Mass : 16200(Kg)

Max. Speed : 89,105(km/h)

App./Dep.Angle : 19/11,19/12,19/13(°)

Front / Rear suspension : 1260/2140,1260/2270,1260/2340,1420/1980,1420/2110,1420/2180,1450/1950,1450/2080,1450/2150(mm)

Axle Load : 5600/10600kg

Tank Volume : 10000L

Contact Now

ZBJ5160GXWE6 10m³ 10000L 16tons diesel sewer sewage suction truck

Core Parameters

Total Weight: 16200Kg, stable for suction, transport and discharge of fecal liquid or dirt.

Size: 7350,7480,7550×2500,2550×3300,3350,3450,3550mm, fits various work environments.

Power: 239hp, strong for efficient operations.

Load Capacity: 8270,8205,8070,8005Kg, handles large fecal liquid or dirt amounts.

Main Devices & Functions

Key devices: tank and sewage suction pump, used for suction, transport and discharge of fecal liquid/dirt. Tank lifts for easier discharge.

Wheelbase & Tank Specs

Wheelbase: Only 3950mm.

Tank Capacity: Total 10.5m³; effective 10m³.

Tank Dimensions: Straight section 4150×1800mm (diameter); total length 4870mm.

Safety

ABS: Optional J ABS (Jiaozuo Borui Ke) and ABS/ASR-24V-4S/4M (Xiangyang Dongfeng Longcheng), ensuring stable braking.

Protection: Side/rear (Q235). Side: bolted; rear: welded (150×50mm section, 470mm off ground).

Options

Direct power ETC, speed limiter (89km/h).

Cab (with chassis).

Positions/styles of urea tank, gas tank, battery, pump (left/right sides).

Hydraulic locking rod, rear outlet, and appearance styles.

Uses

Suitable for urban/rural fecal liquid/dirt tasks. 239hp, proper load, and professional devices ensure efficient operations, keeping environments clean.

parameters:

Item	ZBJ5160GXWE6
Energy type	Diesel
Dimension(L x W x H)	7350,7480,7550×2500,2550×3300,3350,3450,3550(mm)
Chassis	EQ1165LJ9CDE
Engine	D4.5NS6B240
Curb Weight	7800,8000(Kg)
Rated Loading	8270,8205,8070,8005(Kg)
Total Mass	16200(Kg)
Maximum Speed	89,105(km/h)
App./Dep.Angle	19/11,19/12,19/13(°)
Front / Rear suspension	1260/2140,1260/2270,1260/2340,1420/1980,1420/2110,1420/2180,1450/1950,1450/2080,1450/2150(mm)
Axle Load	5600/10600kg
Tank Volume	10000L

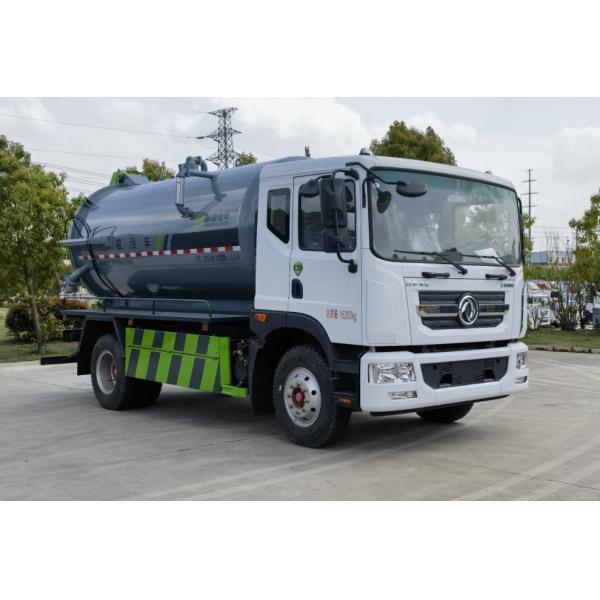

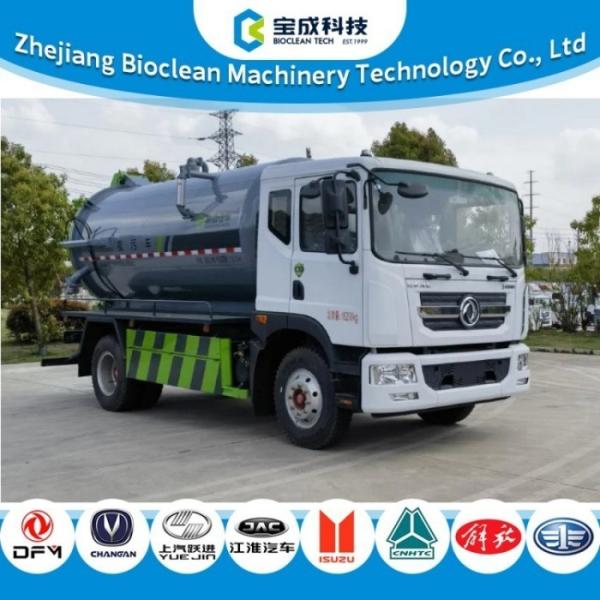

Actual photos

10m3 10000L 16tons Suction Sewage Truck With D4.5NS6B240 Engine

General Optional Setups & Region-Specific Configurations:

Optional Configurations	Intelligent Monitoring System
	Multilingual Control Panel
	Anti-Overflow Alarm Device
	Quick-Connect Fittings & Multi-Size Suction Hoses
	Hydraulic Drive System
	Self-Cleaning Flushing System
	Overload Protection Device
	Anti-overflow Valve
Tropical Regions	Anti-UV Thermal Insulation Coating
	High-Efficiency Cooling System
	Moisture-Resistant Electrical Components
	Corrosion-Resistant Sealing Gaskets
	High-Flow Cooling Water Pump
Cold Regions	Tank Thermal Insulation Layer
	Engine Preheating System
	Battery Heater
	Anti-Freeze Vacuum Pump Oil
	Suction Hose Heating Tape
	Low-Temperature-Resistant Rubber Parts
	Drain Valve Heat Tracing System

10m3 10000L 16tons Suction Sewage Truck With D4.5NS6B240 Engine
