2.2m3 2200L 7.4tons Sewage Suction Truck Diesel Powered Pipeline Dredging

Name: 22m3 2200L 74tons Sewage Suction Truck Diesel Powered Pipeline Dredging
Brand: Bioclean
Price: 4055 USD

Quality 2.2m3 2200L 7.4tons Sewage Suction Truck Diesel Powered Pipeline Dredging for sale

Brand Name : Bioclean

Model Number : ZBJ5070GQWBHA

Certification : CE/ISO 9001/EPA/UL/SASO/ECAS/ Certification

Place of Origin : Ningbo, China

MOQ : 1 Piece

Price : 4055-4565usd

Payment Terms : T/T

Supply Ability : 5,000 units per year

Delivery Time : 15-45 workdays

Packaging Details : Wooden Case /Iron Frame/Container/SKD /CKD

Item : ZBJ5070GQWBHA

Energy type : Diesel

Dimension(L x W x H) : 5995×2150×2650(mm)

Chassis : ZZ1077F3315F174

Engine : D30TCIF1

Curb Weight : 5385(Kg)

Rated Loading : 1845,1780(Kg)

Total Mass : 7360(Kg)

Max. Speed : 80,95(km/h)

App./Dep.Angle : 19/10(°)

Front / Rear suspension : 1165/1550(mm)

Axle Load : 2640/4720 kg

Tank Volume : 2200L

Contact Now

ZBJ5070GQWBHA 2.2m³ 2200L 7.4tons diesel sewer sewage suction truck

Key Specs & Devices

Chassis: 3280mm wheelbase, fit for pro sewage suction/cleaning.

Tanks:

- Sewage: 2.33 total/2.225 effective m³ (liquid waste, 800kg/m³). 3575mm long, 3300×1200mm straight section (front 1500mm lower for high-pressure pump).

- Clean water: 1.86 total/1.78 effective m³ (water, 1000kg/m³). 2900×560×900mm special shape.

- Tanks are independent (can’t both full), liftable. Clean water for cleaning, sewage for suction.

Core Features

Function: Tanks + cleaning/suction tools for sewer drainage/dredging.

Safety: Q235A steel side (bolted) and rear (welded) protection. Rear: 100×50mm, 360mm off ground.

Brakes: Optional ABS (XH-KQ4S4M-E01, CM4XL-4S/4M, VIE ABS-Ⅱ) for stability.

Options

Speed limiter (80km/h).

Rear reel layout, side valve positions, tank mouth/shape.

Chassis accessories, cabs.

Uses

Good for sewers, pipeline dredging. With double tanks, liftable design, handles urban/community waste well.

parameters:

Item	ZBJ5070GQWBHA
Energy type	Diesel
Dimension(L x W x H)	5995×2150×2650(mm)
Chassis	ZZ1077F3315F174
Engine	D30TCIF1
Curb Weight	5385(Kg)
Rated Loading	1845,1780(Kg)
Total Mass	7360(Kg)
Maximum Speed	80,95(km/h)
App./Dep.Angle	19/10(°)
Front / Rear suspension	1165/1550(mm)
Axle Load	2640/4720 kg
Tank Volume	2200L

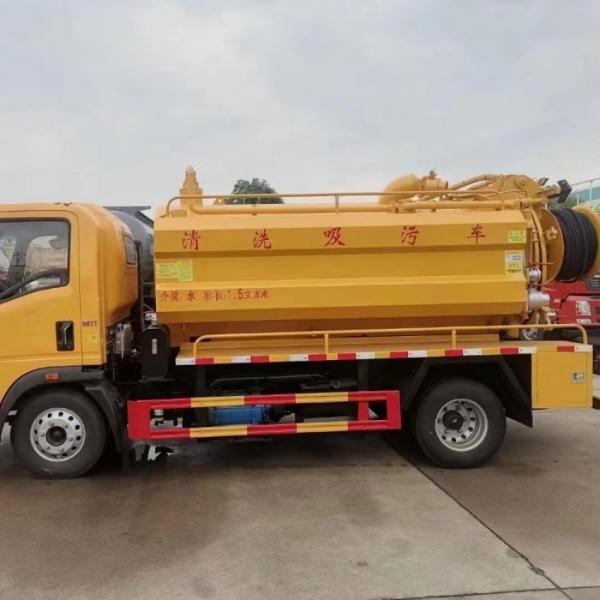

Actual photos

2.2m3 2200L 7.4tons Sewage Suction Truck Diesel Powered Pipeline Dredging

General Optional Setups & Region-Specific Configurations:

Optional Configurations	Intelligent Monitoring System
	Multilingual Control Panel
	Anti-Overflow Alarm Device
	Quick-Connect Fittings & Multi-Size Suction Hoses
	Hydraulic Drive System
	Self-Cleaning Flushing System
	Overload Protection Device
	Anti-overflow Valve
Tropical Regions	Anti-UV Thermal Insulation Coating
	High-Efficiency Cooling System
	Moisture-Resistant Electrical Components
	Corrosion-Resistant Sealing Gaskets
	High-Flow Cooling Water Pump
Cold Regions	Tank Thermal Insulation Layer
	Engine Preheating System
	Battery Heater
	Anti-Freeze Vacuum Pump Oil
	Suction Hose Heating Tape
	Low-Temperature-Resistant Rubber Parts
	Drain Valve Heat Tracing System
