Pure Electric Sewer Suction Vehicle 5.04m3 5040L 11.8tons With TZ365XSC07 Engine

Name: Pure Electric Sewer Suction Vehicle 504m3 5040L 118tons With TZ365XSC07 Engine
Brand: Bioclean
Price: 4980 USD

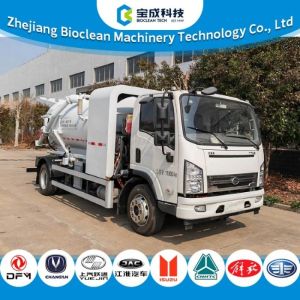

Quality Pure Electric Sewer Suction Vehicle 5.04m3 5040L 11.8tons With TZ365XSC07 Engine for sale

Brand Name : Bioclean

Model Number : ZBJ5120GXWBEV

Certification : CE/ISO 9001/EPA/UL/SASO/ECAS/ Certification

Place of Origin : Ningbo, China

MOQ : 1 Piece

Price : 4980-5995usd

Payment Terms : T/T

Supply Ability : 5,000 units per year

Delivery Time : 15-45 workdays

Packaging Details : Wooden Case /Iron Frame/Container/SKD /CKD

Item : ZBJ5120GXWBEV

Energy type : Pure Electric

Dimension(L x W x H) : 7310×2340×2860(mm)

Chassis : BYD112014FBEVD1

Engine : TZ365XSC07

Curb Weight : 7760(Kg)

Rated Loading : 3845(Kg)

Total Mass : 11800(Kg)

Max. Speed : 95(km/h)

App./Dep.Angle : 19/13(°)

Front / Rear suspension : 1205/1905(mm)

Axle Load : 3900/7900kg

Tank Volume : 5040L

Contact Now

ZBJ5120GXWBEV 5.04m³ 5040L 11.8tons pure Electric sewer sewage suction truck

Core Specs

Weight: 11800Kg, strong for all suction work.

Size: 7310×2340×2860mm, fits various workplaces.

Power: 217hp electric, strong, eco-friendly, efficient.

Load: 3845Kg, carries much dirt, fewer trips.

Devices & Use

Has tank, suction pipe, vacuum pump. Sucks, transports, discharges sewer sediments. Tank: 5.04 total/4.8 effective m³, 1480×3860mm (with head).

Power System

Battery: Lithium iron phosphate (Shanwei BYD), stable range.

Motor: Permanent magnet (Jingjin Electric), 95kW rated/160kW peak, strong, responsive.

Safety

Protection: Aluminum side (bolted); Q345B rear (bolted, 120×60mm, 410mm off ground).

Brakes: CM4XL-4S/4M ABS (Guangzhou Ruili), stable, safe.

Options

Aluminum rims (no front fog lamp); direct-power ETC. Fits needs.

Uses

Good for urban sewers, municipal pipes. Electric, powerful, with pro tools, it handles sediments well, aiding green cleaning.

parameters:

Item	ZBJ5120GXWBEV
Energy type	Pure Electric
Dimension(L x W x H)	7310×2340×2860(mm)
Chassis	BYD112014FBEVD1
Engine	TZ365XSC07
Curb Weight	7760(Kg)
Rated Loading	3845(Kg)
Total Mass	11800(Kg)
Maximum Speed	95(km/h)
App./Dep.Angle	19/13(°)
Front / Rear suspension	1205/1905(mm)
Axle Load	3900/7900kg
Tank Volume	5040L

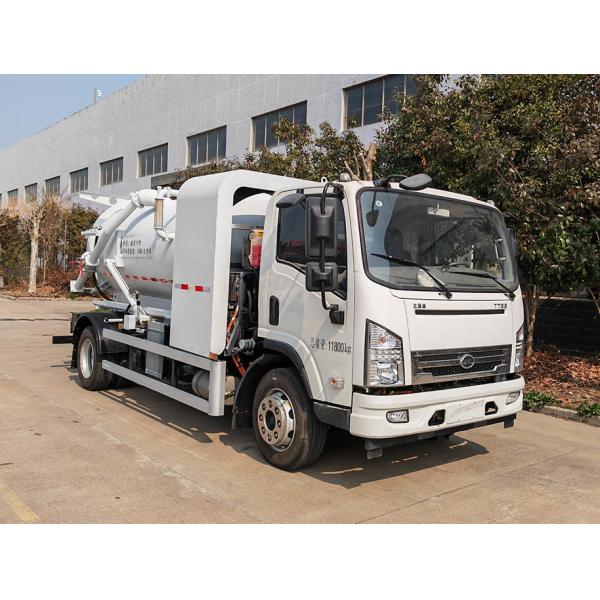

Actual photos

Pure Electric Sewer Suction Vehicle 5.04m3 5040L 11.8tons With TZ365XSC07 Engine

General Optional Setups & Region-Specific Configurations:

Optional Configurations	Intelligent Monitoring System
	Multilingual Control Panel
	Anti-Overflow Alarm Device
	Quick-Connect Fittings & Multi-Size Suction Hoses
	Hydraulic Drive System
	Self-Cleaning Flushing System
	Overload Protection Device
	Anti-overflow Valve
Tropical Regions	Anti-UV Thermal Insulation Coating
	High-Efficiency Cooling System
	Moisture-Resistant Electrical Components
	Corrosion-Resistant Sealing Gaskets
	High-Flow Cooling Water Pump
Cold Regions	Tank Thermal Insulation Layer
	Engine Preheating System
	Battery Heater
	Anti-Freeze Vacuum Pump Oil
	Suction Hose Heating Tape
	Low-Temperature-Resistant Rubber Parts
	Drain Valve Heat Tracing System
