4.8m3 4800L 10tons Suction Sewage Truck 167hp Power Strong Body

Name: 48m3 4800L 10tons Suction Sewage Truck 167hp Power Strong Body
Brand: Bioclean
Price: 5700 USD

Quality 4.8m3 4800L 10tons Suction Sewage Truck 167hp Power Strong Body for sale

Brand Name : Bioclean

Model Number : ZBJ5103GXWBHA

Certification : CE/ISO 9001/EPA/UL/SASO/ECAS/ Certification

Place of Origin : Ningbo, China

MOQ : 1 Piece

Price : 5700-6800usd

Payment Terms : T/T

Supply Ability : 5,000 units per year

Delivery Time : 15-45 workdays

Packaging Details : Wooden Case /Iron Frame/Container/SKD /CKD

Item : ZBJ5103GXWBHA

Energy type : Diesel

Dimension(L x W x H) : 6250×2200×2650(mm)

Chassis : STQ3129L02Y1N6

Engine : YCY25170-66

Curb Weight : 4960(Kg)

Rated Loading : 4800(Kg)

Total Mass : 9890(Kg)

Max. Speed : 80(km/h)

App./Dep.Angle : 18/12,18/11(°)

Front / Rear suspension : 1200/1750,1200/1950(mm)

Axle Load : 3460/6430kg

Tank Volume : 4800L

Contact Now

ZBJ5103GXWBHA 4.8m³ 4800L 10tons diesel sewer sewage suction truck

Core Parameters

Total Weight: 9890Kg. Strong body, fits various suction needs.

Size: 6250×2200×2650mm. Suits many workplaces, good passability.

Power: 167hp. Strong for efficient sewage suction.

Load: 4800Kg. Carries much sewage, fewer transports.

Devices & Functions

Cleans sewer sewage, with vacuum pump and tank. Tank: 4200mm total length, 3600×1400mm straight section. 5.04 total/4.80 effective m³, liftable for easy dumping. Wheelbase/rear overhang options: 3300/1750mm, 3100/1950mm.

Safety

Side/rear protection: Q235A steel, welded (left, right, lower rear).

Rear protection: 120×50mm cross-section, 400mm off ground, reliable.

Equipped with ABS/ASR-24V-4S/4M (Dongke Knorr) for safer driving.

Options

Choose cab, front bumper with chassis; new-style cab available. Meets different needs.

Application Scenarios

With strong power, large load, and pro suction devices, it’s ideal for sewer cleaning. Efficiently sucks and transports sewage, supporting environmental cleaning.

parameters:

Item	ZBJ5103GXWBHA
Energy type	Diesel
Dimension(L x W x H)	6250×2200×2650(mm)
Chassis	STQ3129L02Y1N6
Engine	YCY25170-66
Curb Weight	4960(Kg)
Rated Loading	4800(Kg)
Total Mass	9890(Kg)
Maximum Speed	80(km/h)
App./Dep.Angle	18/12,18/11(°)
Front / Rear suspension	1200/1750,1200/1950(mm)
Axle Load	3460/6430kg
Tank Volume	4800L

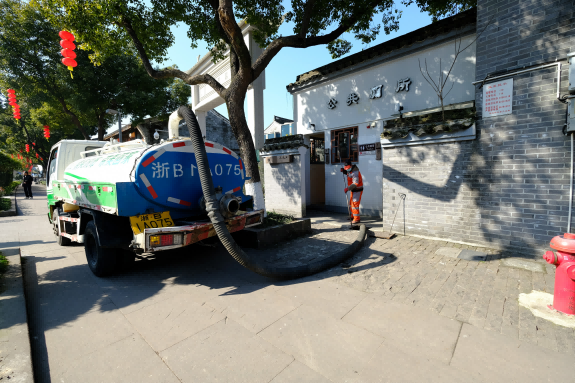

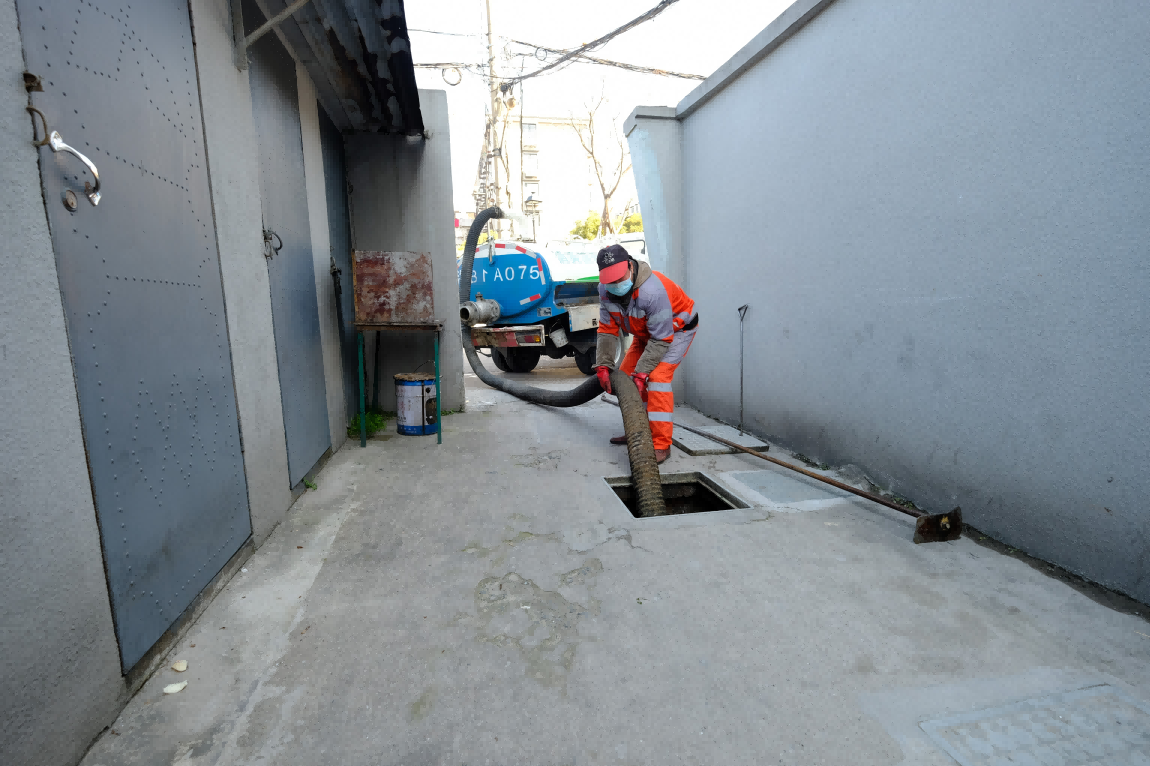

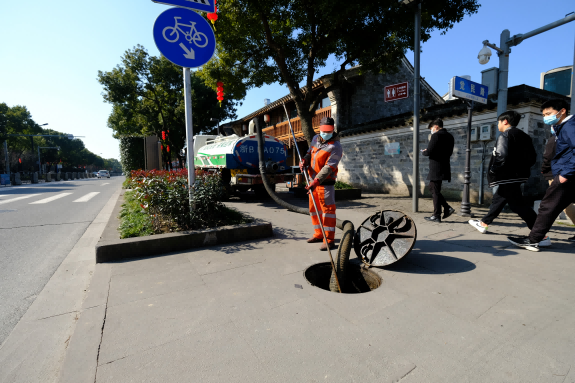

Actual photos

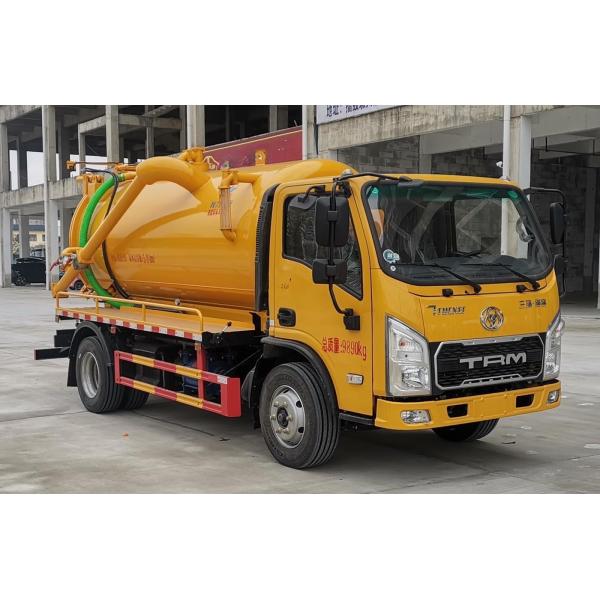

4.8m3 4800L 10tons Suction Sewage Truck 167hp Power Strong Body

General Optional Setups & Region-Specific Configurations:

Optional Configurations	Intelligent Monitoring System
	Multilingual Control Panel
	Anti-Overflow Alarm Device
	Quick-Connect Fittings & Multi-Size Suction Hoses
	Hydraulic Drive System
	Self-Cleaning Flushing System
	Overload Protection Device
	Anti-overflow Valve
Tropical Regions	Anti-UV Thermal Insulation Coating
	High-Efficiency Cooling System
	Moisture-Resistant Electrical Components
	Corrosion-Resistant Sealing Gaskets
	High-Flow Cooling Water Pump
Cold Regions	Tank Thermal Insulation Layer
	Engine Preheating System
	Battery Heater
	Anti-Freeze Vacuum Pump Oil
	Suction Hose Heating Tape
	Low-Temperature-Resistant Rubber Parts
	Drain Valve Heat Tracing System
