4495KG 2.1m³ pure electric roadside assistance Service Road Maintenance Truck
Loading Capacity: 1645kg, 1685kg, 1585kg
Main Use & Key Devices
Used for cleaning and maintaining urban roads, sidewalks, guardrails, curbs, etc. Equipped with a box, water system and front water spray frame.
Power & Energy
Energy storage: Lithium iron phosphate battery (CATL, cell and assembly by CATL).
Drive motor: Rated power 40kW, peak power 70kW.
Dimensions
Overall length: 5440mm (including 364mm front overhang).
Safety Protections
Side protection: Replaced by side skirt (Q235B), bolted.
Rear protection: Replaced by rear skirt (Q235B), bolted. Size 245×30mm, 460mm above ground.
ABS System
Model: RL-108
Optional Configurations
ETC device; rear arrow lights (only on during work).
With/without rear upper spray, with/without rear lower spray, 360° camera, internal pipelines.
Roller shutter lower trim, box internal structure, B-type rear lower spray device, top cover.
Side guards, wheel fenders, rear logo look, left/right corner sprays.
Uses
Suitable for urban road maintenance. Flexible options meet various work needs.
parameters
| Item | ZBJ5040TYHDFBEV |
| Energy type | Pure electric |
| Dimension(L x W x H) | 5440×1780,1715×2060,2220(mm) |
| Chassis | EQ1041TACEV4 |
| Engine | TZ215XS070 |
| Secondary Engine | — |
| Curb Weight | 2720,2680,2780(Kg) |
| Rated Loading | 1645,1685,1585(Kg) |
| Total Mass | 4495(Kg) |
| Max.Speed | 80(km/h) |
| Front/Rear suspension | 1176/1100(mm) |
| Tank Volum | 1.2-1.5 cubic meters |

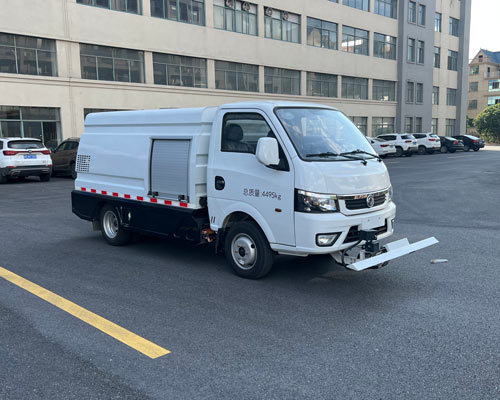

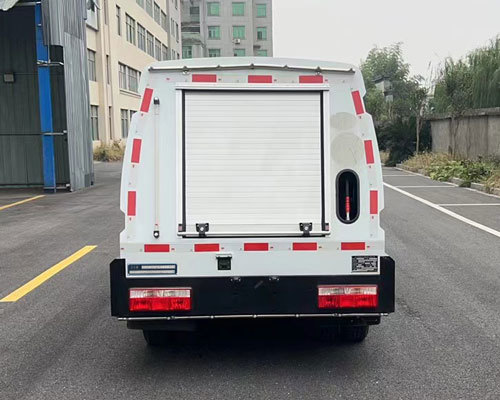

Actual photos
