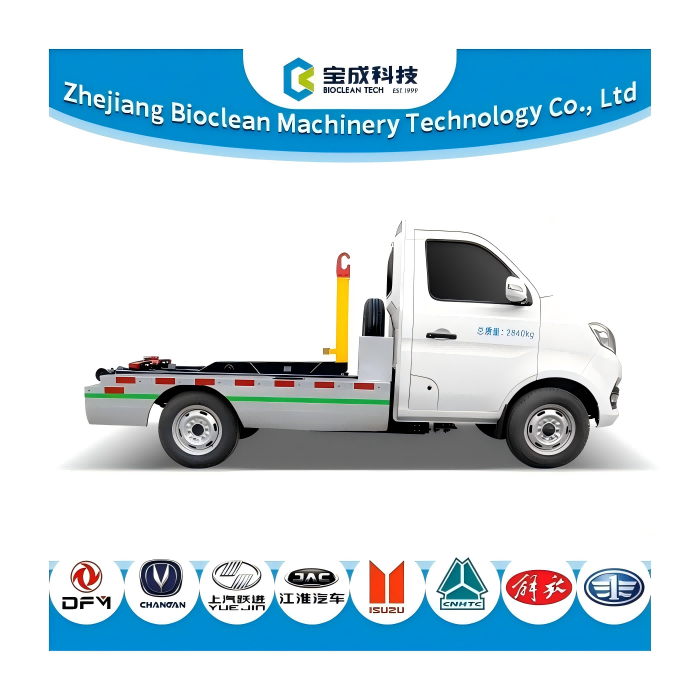

4.1M3 1.5ton Pure Electric Hook Lift Garbage Truck With 2840Kg Loading Capacity

Name: 41M3 15ton Pure Electric Hook Lift Garbage Truck With 2840Kg Loading Capacity
Brand: Bioclean
Price: 4600 USD

Brand Name : Bioclean

Model Number : ZBJ5031ZXXBEV

Place of Origin : Ningbo, China

MOQ : 1 Piece

Price : 4600-6500usd

Payment Terms : T/T

Supply Ability : 5,000 units per year

Delivery Time : 15-45 workdays

Packaging Details : Wooden Case /Iron Frame/Container/SKD /CKD

Certification : CE/ISO 9001/EPA/UL/SASO/ECAS/ Certification

Dimension(L x W x H) : 4330×1600×1935mm

Chassis : SC1031XND64BEV

Drive Motor : TZ180XSIN101

Rated/Peak Power : 30/60KW

Battery Capacity : 41.86KWh

Chassis Total Capacity : 1110kg

Maximum Speed : 80km/h

Approaching/Departure Angle : 40°/23°

Front/Rear Overhang : 720mm/910mm

Loading Capacity : 2840Kg

Contact Now

Model ZBJ5031ZXXBEV Detachable Garbage Truck

An all-electric vehicle with a core lifting arm mechanism, offering three key functions:

Swift bin handling: Lifts 2230×1470×1250mm bulk bins (1.5-ton capacity) from the ground for transport or lowers them to designated spots.
Automatic dumping: Tilts on-board bins to empty contents.
Safety assurance: Rear supports prevent front-end lift during loading; locking mechanisms secure bins in transit.

With a 2700mm wheelbase for tight turns and agile movement, its electric power ensures eco-friendliness, ideal for narrow areas like residential zones and back lanes.

Item	ZBJ5031ZXXBEV
Energy Type	Pure Electric
Dimension	4330x1600x1935mm
Chassis	SC1031XND64BEV
Engine (Moto)	TZ180XSIN101
Curb Weight	1600 kg
Rated Loading	1110 kg
Total Mass	2840 kg
Max.Speed	80 km/h
App./Dep.Angle	40°/23°
Front/Rear Overhang	720/910kg
Axle Load	1290/1550kg

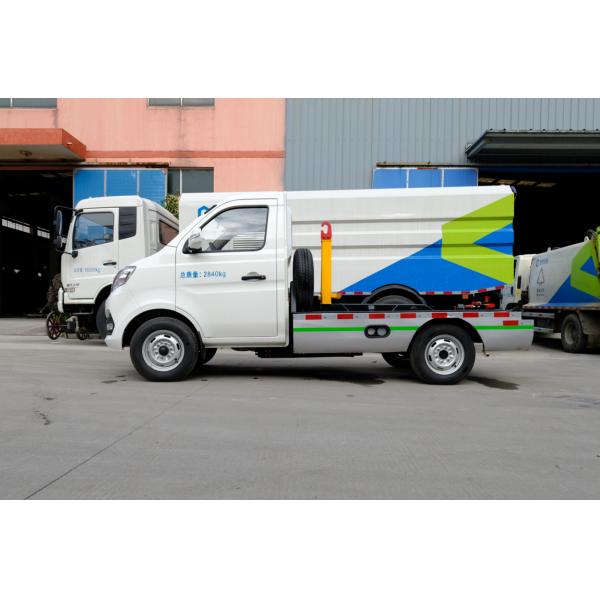

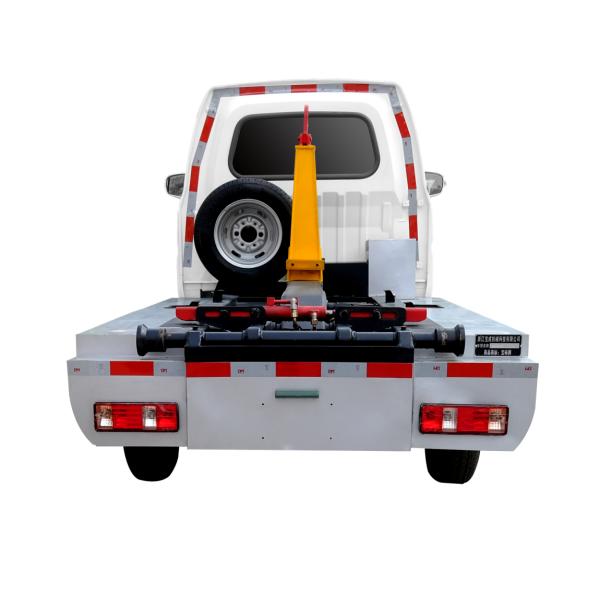

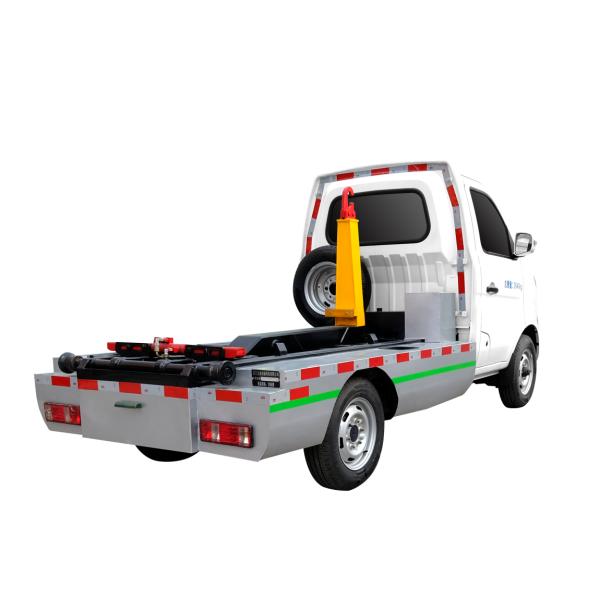

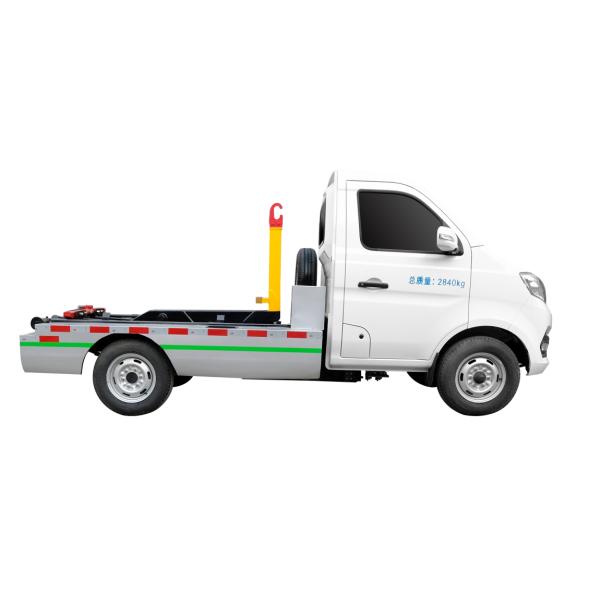

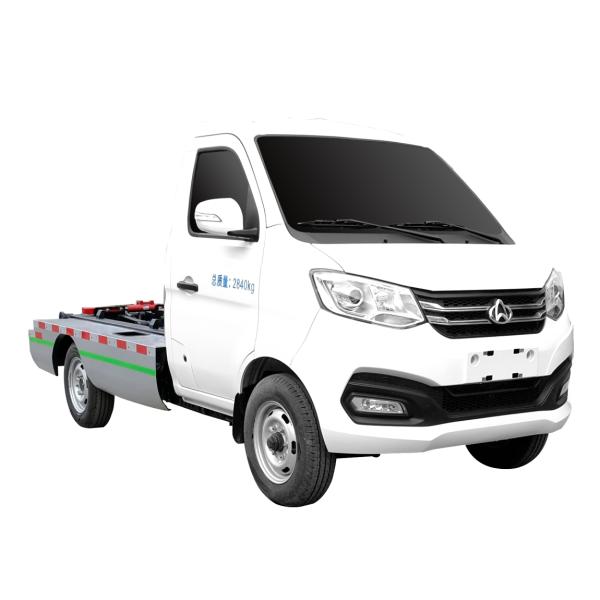

Actual photos
