12tons 8m3 Water Sprinkler Vehicle 105km/H Maximum Speed Strong Power

Name: 12tons 8m3 Water Sprinkler Vehicle 105kmH Maximum Speed Strong Power
Brand: Bioclean
Price: 4585 USD

Quality 12tons 8m3 Water Sprinkler Vehicle 105km/H Maximum Speed Strong Power for sale

Brand Name : Bioclean

Model Number : ZBJ5120GSSC

Place of Origin : Ningbo, China

MOQ : 1 Piece

Price : 4585-8855usd

Payment Terms : T/T

Certification : ZBJ5120GSSC

Supply Ability : 5,000 units per year

Delivery Time : 15-45 working days

Packaging Details : Wooden Case /Iron Frame/Container/SKD /CKD

Dimension(L x W x H) : 6840×2190×2415(mm)

Chassis : EQ1125SJ8CDC

Engine : D4.0NS6B170

Maximum Speed : 105km/h

Approaching/Departure Angle : 15/14(°)

Front/Rear Overhang : 1130/1910(mm)

Axle Load : 4350/7645

Curb Weight : 6750(Kg)

Rated Loading : 5050(Kg)

Total Mass : 11995(Kg)

Number of tires : 6

tyre size : 245/70R19.5,8.25R20,245/70R19.5 16PR,8.25R20 16PR,8.25R20 14PR

Contact Now

12tons 8m³ water tank water spray spraying tanker sprayer truck

Chassis: Adopt a second-class chassis of a well-known brand, which has strong load-bearing capacity, advanced technology and reliable quality. It is used to realize functions such as the bearing of special mechanisms and the driving of the vehicle.
Engine: Adopt a diesel engine of a well-known brand, which has strong power.

Low-pressure Water Pump: Adopt a self-priming two-stage centrifugal pump from a renowned enterprise, which has high efficiency and good reliability.
Front Spraying Device: There is a pair of duckbill-shaped forward nozzles under the front of the cab, which can perform forward fan-shaped spraying and cover 3 lanes at a time.
Middle Opposite Flushing: There is one conical nozzle on each side of the opposite flushing device under the tank body for two-way flushing. By loosening the two rotating sleeves at the nozzles, the nozzle angle can be adjusted arbitrarily. The front opposite flushing can wash 6 lanes at a time.
Rear Sprinkling Device: The rear sprinkling device is arranged on the vertical water pipes on both sides of the rear platform. The upper part of the water pipe is a duckbill-shaped nozzle facing left and right sides, and the lower part is a circular nozzle.

Parameters:

Item	ZBJ5120GSSC
Energy type	Diesel
Dimension(L x W x H)	6840×2190×2415(mm)
Chassis	EQ1125SJ8CDC
Engine	D4.0NS6B170
Curb Weight	6750(Kg)
Rated Loading	5050(Kg)
Total Mass	11995(Kg)
Front/Rear Overhang	1130/1910(mm)
Tyre size	245/70R19.5,8.25R20,245/70R19.5 16PR,8.25R20 16PR,8.25R20 14PR

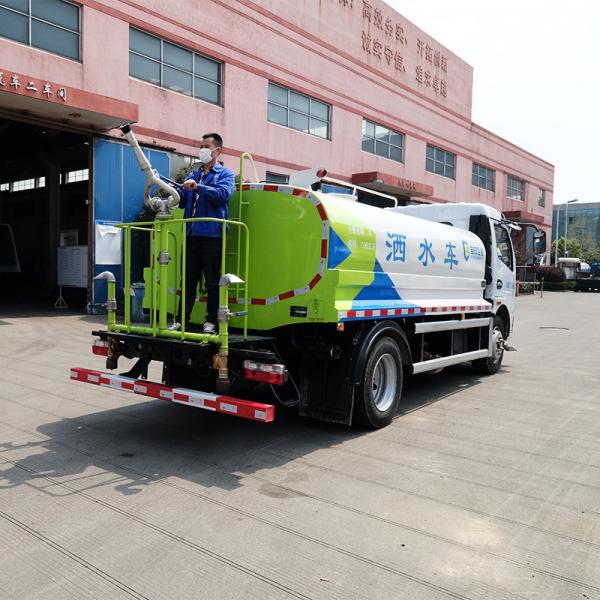

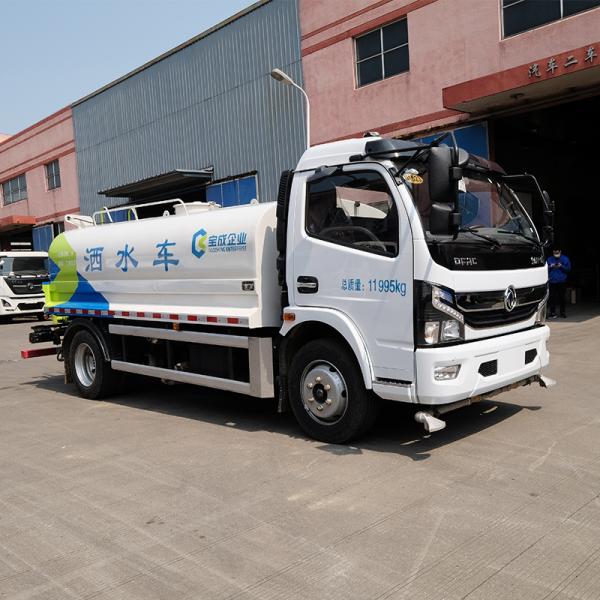

Actual photos:

12tons 8m3 Water Sprinkler Vehicle 105km/H Maximum Speed Strong Power
