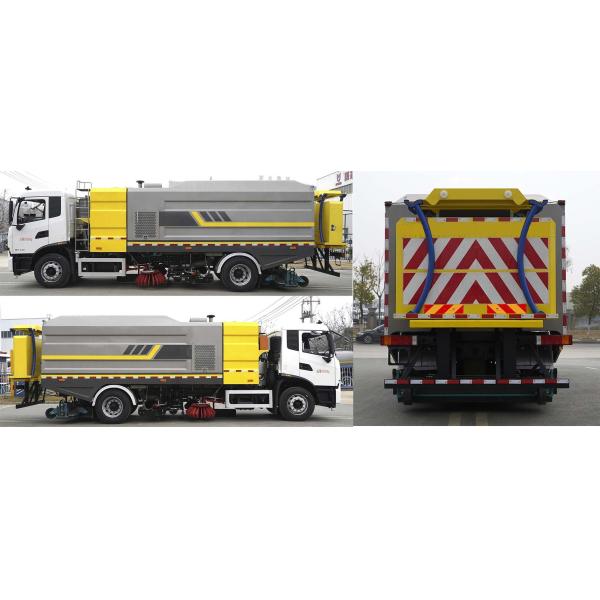

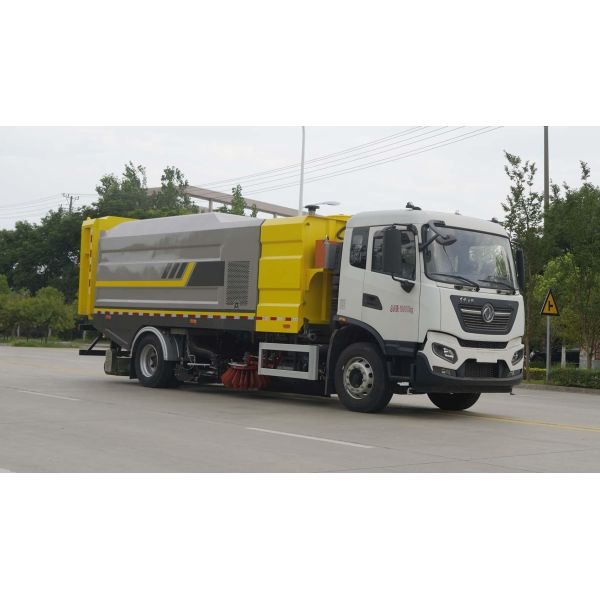

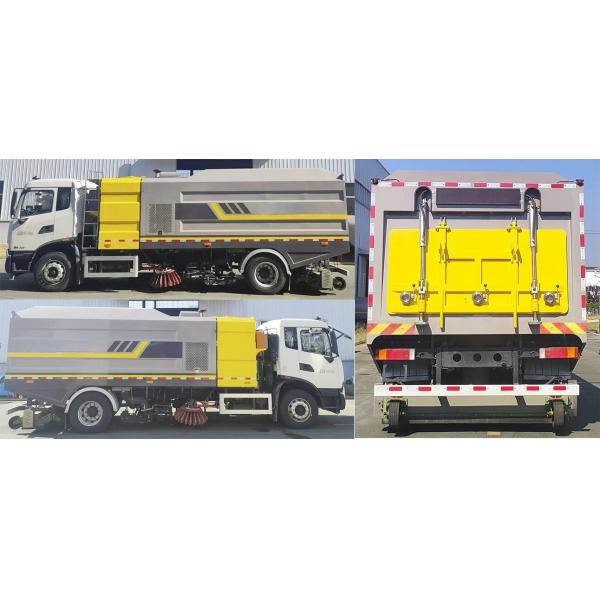

This vehicle is mainly used for road cleaning. It is equipped with core devices such as a box, a cleaning device assembly and an anti-collision buffer device, which can efficiently clean road garbage.
Only 5300mm wheelbase is used, and there are multiple corresponding combinations of overall dimensions:
9850/5300/1400/3150(mm)
9880/5300/1430/3150(mm)
9905/5300/1455/3150(mm)
8920/5300/1400/2220(mm)
8950/5300/1430/2220(mm)
8975/5300/1455/2220(mm)
9800/5300/1400/3100(mm)
2. Safety Configuration
(1) Protection Devices
The side protection is made of aluminum alloy, connected by bolts, which is stable and reliable.
The lower rear protection is made of Q235B, connected by bolts and welding. Its cross-sectional size is 120×60mm, and the height from the ground is 480mm, which effectively improves operation safety.
(2) Braking System
It is equipped with a variety of optional ABS systems, including 3631010-C2000 and ABS 8 from Dongke Knorr Commercial Vehicle Brake System (Shiyan) Co., Ltd., ABS-E 4S/4M from ZF Commercial Vehicle System (Qingdao) Co., Ltd., and J ABS from Jiaozuo Boruike Control Technology Co., Ltd., which can effectively improve braking stability.
3. Optional Configurations
A speed limiting device can be optionally installed, with a speed limit of 89km/h, which conforms to road driving regulations.
The upper installation style can be optionally selected, which can be flexibly chosen according to actual needs to meet the appearance and functional requirements of different operation scenarios.
4. Application Scenarios
With professional cleaning devices, stable performance and various size options, this vehicle is suitable for cleaning operations on various roads. It can efficiently deal with different road environments and provide reliable guarantee for road cleaning.
