Open Type High Speed Trash Bin Truck Customized Garbage Pickup Truck

Name: Open Type High Speed Trash Bin Truck Customized Garbage Pickup Truck
Brand: Bioclean
Price: 2895 USD

Quality Open Type High Speed Trash Bin Truck Customized Garbage Pickup Truck for sale

Brand Name : Bioclean

Model Number : ZBJ5031CTYC

Place of Origin : Ningbo, China

MOQ : 1 Piece

Price : 2895-5690 usd

Payment Terms : T/T

Certification : CE/ISO 9001/EPA/UL/SASO/ECAS/ Certification

Supply Ability : 5,000 units per year

Delivery Time : 15-45 working days

Packaging Details : Wooden Case /Iron Frame/Container/SKD /CKD

Dimension(L x W x H) : 5700×1900×2020mm

Chassis : EQ1035SJ16QC

Engine : DAM16KLQ

Weight : 1825kg

Load Capacity : 1540kg

Chassis Total Capacity : 3495kg

Maximum Speed : 100km/h

Approaching/Departure Angle : 21°/17°

Front/Rear Overhang : 1190mm/1510mm

Axle Load : 1300kg/2195kg

Carriage volume : 18 standard 240L trash cans

Contact Now

Open Type High Speed Trash Bin Truck Economic Customized Waste Collection Truck

Total Weight: 3495kg

Loading Capacity: 1540kg

Curb Weight: Includes fire extinguisher, tools, etc. Does not include spare tire.

Cargo Bed & Rails:

- Standard rail weight: 383.4kg; Optional rail

-free weight: 373.4kg. - Material: Q235.

- Thickness: Bottom and rear side plates 2mm; front and main side plates 1.5mm.

Use: Collects and transports barreled garbage with the carriage and hydraulic lift tailgate.

Tailgate: Stowed horizontal length 185mm; weight 195kg.

Cargo Bed Height: 600mm with optional rails; 360mm without rails.

Engine: Comes with DAM16KLQ and LJ4A15Q6 engines (with chassis).

Fuel consumption: 9.1L/100km for both. ABS System: Model APG3550500A;

Optional Features:

- Cab appearance (with chassis).

- ETC on-board device.

parameters

Item	ZBJ5031CTYC
Energy Type	Gasoline (92#)
Dimension	5700x1900x2020
Carriage Internal Dim.	3750X1840X360
Chassis	EO1035SJ160C
Engine	DAM16KLO
Curb Weight	1825 kg
Rated Loading	1540 kg
Total Mass	3495 kg
Max.Speed	100 km/h
App./Dep.Angle	21°/17°
Front/Rear Overhang	1190/1510 kg
Axle Load	1300/2195 kg
Rear Hyd.Tailboard	Rated load 500kg,capable of loading 18,standard 240L trash cans

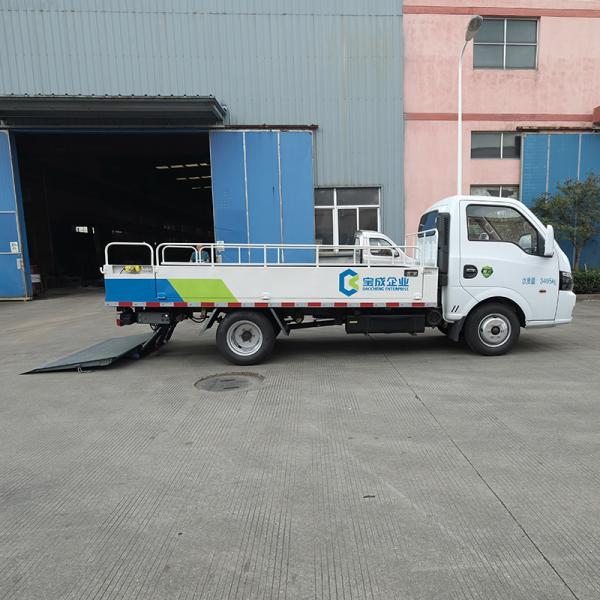

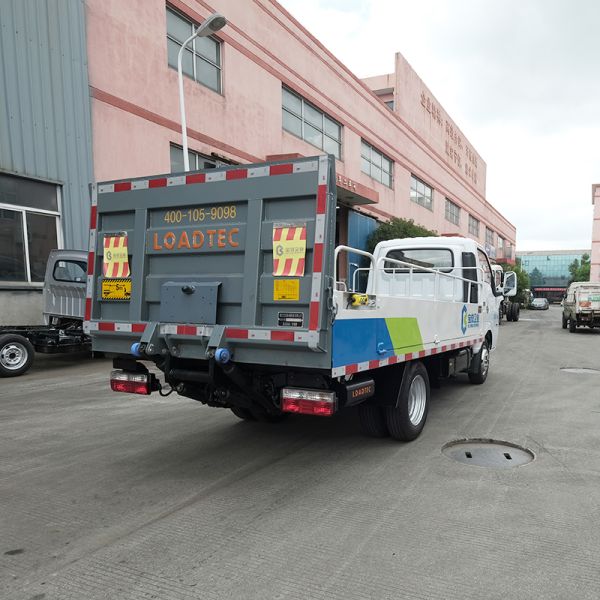

Actual photos

Open Type High Speed Trash Bin Truck Customized Garbage Pickup Truck
