New Energy Container Garbage Bin Truck Small Pure Electric High Efficiency

  • 1
  • 2
  • 3

Brand Name : Bioclean

Model Number : ZBJ5031CTYBEV

Place of Origin : Ningbo, China

MOQ : 1 Piece

Price : 3550-6895 usd

Payment Terms : T/T

Certification : CE/ISO 9001/EPA/UL/SASO/ECAS/ Certification

Supply Ability : 5,000 units per year

Delivery Time : 15-45 working days

Packaging Details : Wooden Case /Iron Frame/Container/SKD /CKD

Dimension(L x W x H) : 4905×1610×1935mm

Chassis : SC1031XND64BEV

Drive Motor : TZ180XSIN101

Rated/peak power : 30/60 KW

Battery Capacity : 41.86KWh

Chassis Total Capacity : 1600kg

Load Capacity : 1110Kg

Approaching/Departure Angle : 40°/19°

Front/Rear Overhang : 720mm/1295mm

Maximium Load : 2840kg

Carriage volume : 10 standard 240L trash cans

Front/rear overhang lenght : 720/1485 mm

Contact Now

New Energy Container Garbage Bin Truck Small Pure Electric High Efficiency
Total Weight: 2840kg

Loading Capacity: 1110kg

Curb Weight: Includes fire extinguisher, tools; no spare tire.

Cargo Rails: Standard 290kg; optional rail-free 282.6kg. Material: Q235. Thickness: Bottom/rear plates 2mm; front/main side plates 1.5mm.

Use: Collects/transports barreled garbage via dustbin, lifting tailgate, hydraulic devices.

Tailgate: Stowed length 191mm; weight 195kg.

Cargo Bed Height: 600mm with optional rails; 360mm without.

Battery: Single (lithium iron phosphate): model CB320 (CATL), 3.22V/125Ah. Pack: 334.88V/125Ah (CATL).

Motor: Permanent magnet synchronous. Model TZ180XSIN101; controller KTZ33X26S330. Rated/peak power: 30kW/60kW.

ABS: Model YF8 (Wuhan Yuanfeng), four-channel.

Options: Controller position, rim styles (with chassis); no front fog lights; ETC device.
parameters:
Item ZBJ5031CTYBEV
Energy Type Pure Electric
Dimension 4905x1610x1935 mm
Chassis SC1031XND64BEV
Driving Moto TZ180XSIN101
Rated Power 30/60 KW
Battery Cpacity 41.86 Kwh
Curb Weight 1600 kg
Rated Loading 1110 kg
Total Mass 2840 kg
Max.Speed 80 km/h
App./Dep.Angle 40°/19°
Front/Rear Overhang 720/1485 mm
Dedicated Device Can load 10 standard 240L trash cans

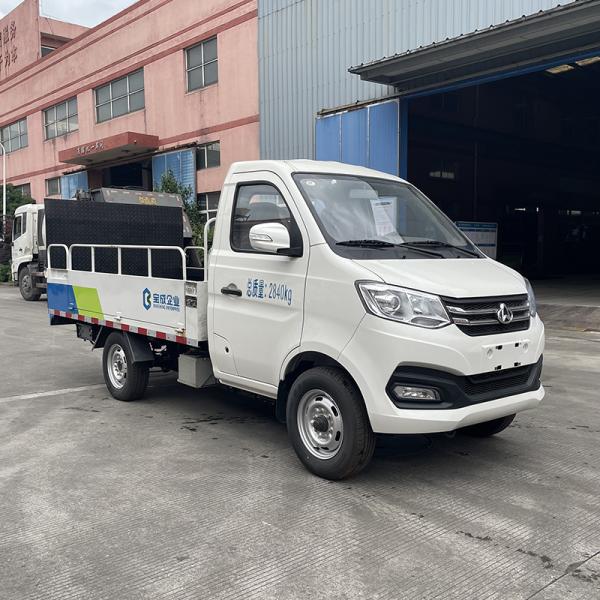

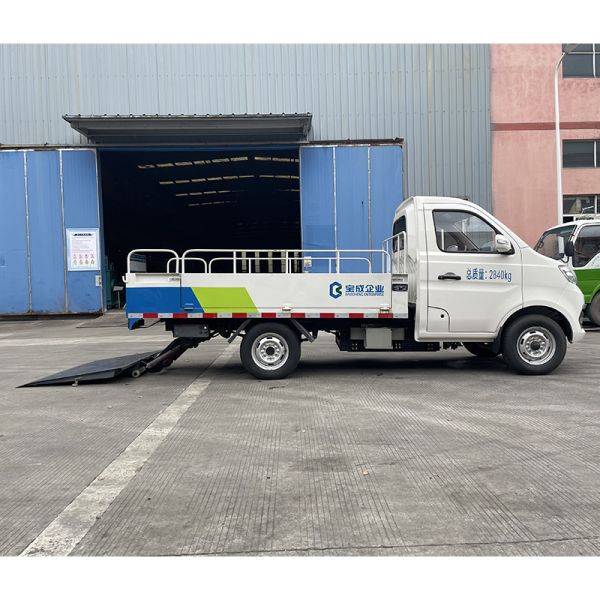

Actual photos

New Energy Container Garbage Bin Truck Small Pure Electric High Efficiency

New Energy Container Garbage Bin Truck Small Pure Electric High Efficiency New Energy Container Garbage Bin Truck Small Pure Electric High Efficiency

New Energy Container Garbage Bin Truck Small Pure Electric High EfficiencyNew Energy Container Garbage Bin Truck Small Pure Electric High EfficiencyNew Energy Container Garbage Bin Truck Small Pure Electric High EfficiencyNew Energy Container Garbage Bin Truck Small Pure Electric High EfficiencyNew Energy Container Garbage Bin Truck Small Pure Electric High EfficiencyNew Energy Container Garbage Bin Truck Small Pure Electric High EfficiencyNew Energy Container Garbage Bin Truck Small Pure Electric High EfficiencyNew Energy Container Garbage Bin Truck Small Pure Electric High Efficiency
