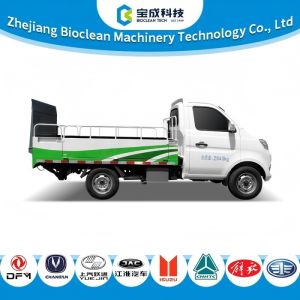

Hanging Barrel Garbage Pickup Truck 1360kg Load Capacity 10 Bin

Name: Hanging Barrel Garbage Pickup Truck 1360kg Load Capacity 10 Bin
Brand: Bioclean
Price: 5685 USD

Quality Hanging Barrel Garbage Pickup Truck 1360kg Load Capacity 10 Bin for sale

Brand Name : Bioclean

Model Number : ZBJ5030CTYC

Place of Origin : Ningbo, China

MOQ : 1 Piece

Price : 5685-7355 usd

Payment Terms : T/T

Certification : CE/ISO 9001/EPA/UL/SASO/ECAS/ Certification

Supply Ability : 5,000 units per year

Delivery Time : 15-45 working days

Packaging Details : Wooden Case /Iron Frame/Container/SKD /CKD

Dimension(L x W x H) : 4715×1600×1945mm

Chassis : SC1031XND64A

Engine : DAM16KR/DK15C

Weight : 1350kg

Load Capacity : 1360kg

Chassis Total Capacity : 2840kg

Maximum Speed : 100km/h

Approaching/Departure Angle : 40°/15°

Front/Rear Overhang : 720mm/1295mm

Axle Load : 1290kg/1550kg

Carriage volume : 10 standard 240L trash cans

Contact Now

Hanging Barrel Garbage Can Truck Open Type High Capacity Mini Garbage Truck

Gross Weight: 2840kg

Loading Capacity: 1360kg

Usage: Collects and transports barreled garbage via dustbin, lifting tailgate and hydraulic devices.

Curb Weight: Includes fire extinguisher, on-board tools, etc., excluding spare tire.

Cargo Bed & Rails:

Standard rail weight: 255.3kg; Optional rail-free weight: 247.9kg.

Main material: Q235.

Thickness: Bottom plate and rear side plates 2mm; front plate and main side plates 1.5mm.

Optional cargo bed rails: Height 600mm (with rails); 360mm (without rails).

Tailgate: Horizontal length in stowed state: 200mm; Weight: 195kg.

Engine & Fuel Consumption: Equipped with DK15C and DAM16KR engines. Fuel consumption: 7.5L/100km.

ABS System: Model YF8; Control mode: Four-channel.

Optional Configurations:

Front fog lights (not optional with chassis).

Rim styles (optional with chassis).

Square fuel tank (optional with chassis).

ETC on-board device.

parameters

Item	ZBJ5030CTYC
Energy Type	Gasoline (92#)
Dimension	4905x1600x1945mm
Carriage Internal Dim.	2650x1480x360mm
Chassis	SC1031XND64A
Engine	DAM16KR/DK15C
Curb Weight	1470 kg
Rated Loading	1240 kg
Total Mass	2840 kg
Max.Speed	100 km/h
App./Dep.Angle	40°/15°
Front/Rear Overhang	720/1485 kg
Axle Load	1290/1550 kg
Rear Hyd.Tailboard	Rated load 500kg,capable of loading 10,standard 240Ltrash cans

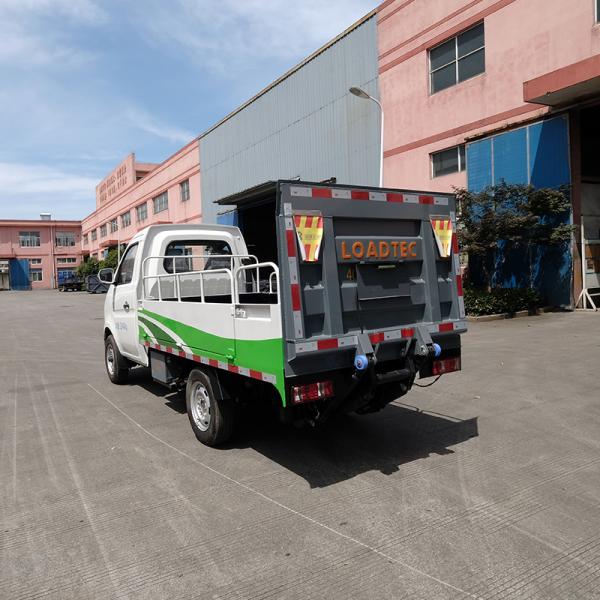

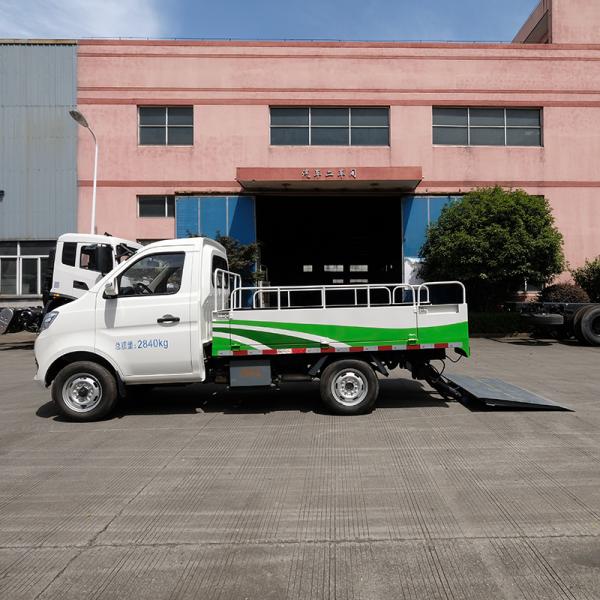

Actual photos

Hanging Barrel Garbage Pickup Truck 1360kg Load Capacity 10 Bin
